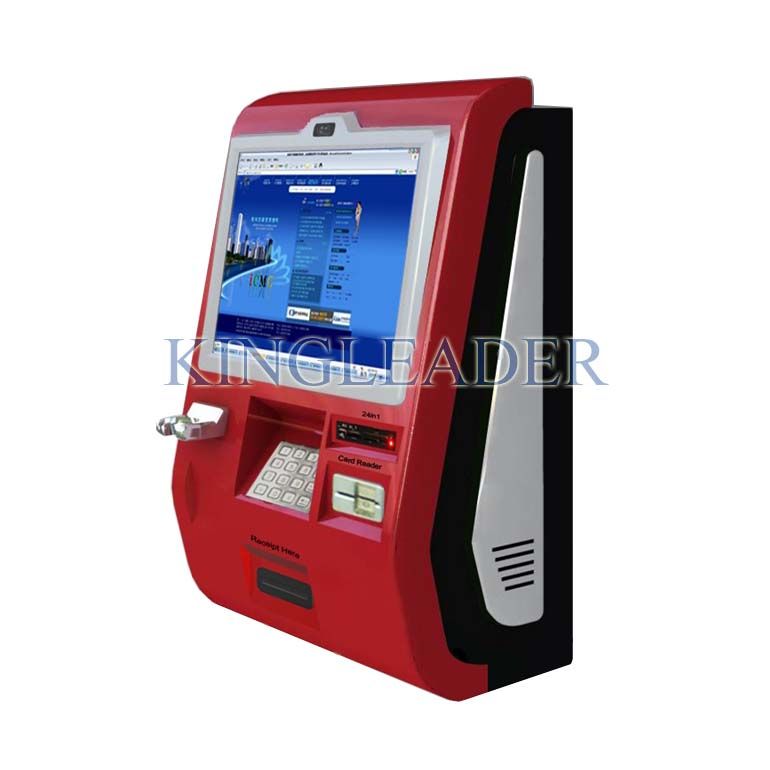

Fashionable wallmount kiosk with camera,handset,metal keypad,cash acceptor
Detailed Product Description
Fashionable wallmount kiosk with camera, handset, metal keypad, cash acceptor
Key Features
With camera, handset, metal keypad, cash acceptor, card reader and thermal receipt printer
High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
15", 17", 19"TFT LCD displays for option
Durable steel enclosure, fashionable and floor space-saving design
Built-in hi-fi amplified speakers
Customization available upon request
Typical pplications: convenience store or other places where information and/or transaction are provided in self-service and interactive manner but floor space is at a premium.
|
Technical Specifications
|
|
TFT LCD Display
- Resolution: 1024x768(15")1280x1024(17"and 19")
- Brightness: 250~300 nits
- Contrast ratio: 450:1
- Response time :8 ms
|
Touch Screen
- Vandal-proof SAW touch screen
- Material: Heat tempered glass with thickness 6mm
- Resolution: 4096*4096
- Deviation of error: <2mm
- Light Transmittance: 92%
- Surface Hardness: 7 Mohs scale
- Lifetime:50, 000, 000 times at one single location
- Response time: less than 16 ms
- Touch activation force: 10~100g
|
Enclosure
- Durable steel enclosure (different colors for option)
- Built-in power control panel, and hi-fi speakers.
- Two cooling fans for computer board and main body separately
- RJ45/RJ11 interface
- Large access doors with tubular locks/keys
|
|
Mother Board
- Integrated display card/sound card/net card
- CPU: Intel Pentium dual core E5700, 3.6 GB (upgradeable on request)
- RAM: 2GB (upgradeable on request)
- Hard Disc: 500GB (upgradeable on request)
- Internet functionality
|
Compatible Operation System
LINUX/Win3.X/98/2000/NT4.0/XP
|
Working Voltage
AC 220V, 50 Hz or 110V, 60 Hz for option
|
|
Ambient Environment
- WorkingTemperature
-20°C~65°C;RelativeHumidity: 30%~90%
- Storage Temperature:
-40°C~80°C;Relative Humidity: 5%~95%
|
Weight and Dimensions
- Weight: 22 kgs for 19
- Dimensions: 45 x 65 x 30 cm(Width xHeight x Depth) for 19"
|
Peripherals
camera, handset, metal keypad, cash acceptor, card reader and thermal receipt printer
|
