Detailed Product Description

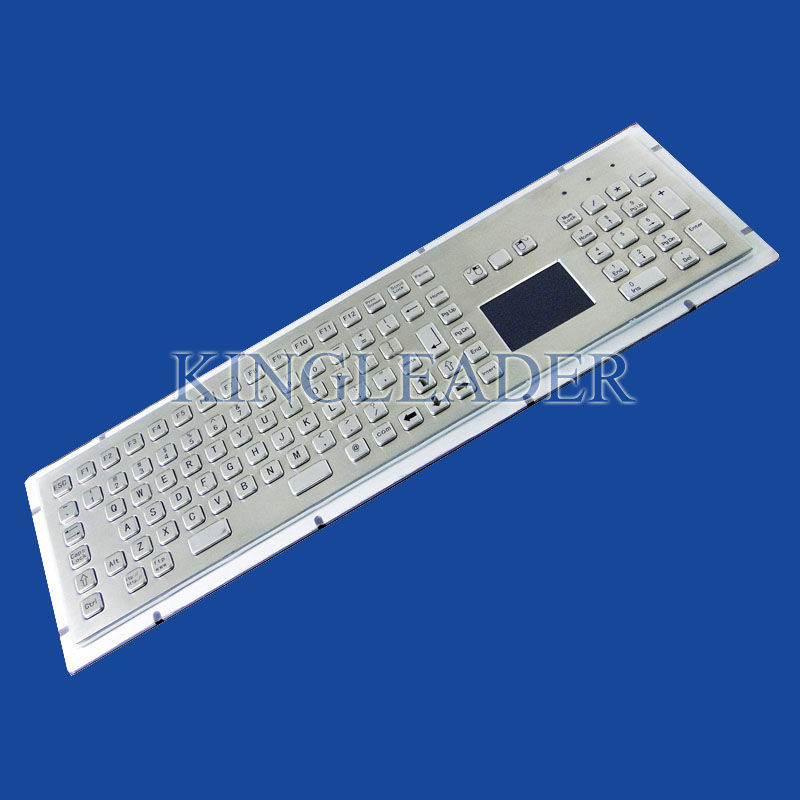

Industrial panel mount metal keyboard with touch pad, function keys and number keypad
Key Features:
1) 103 keys(of them 12 function keys), panel mount
2) Integrated touchpad and numeric keypad;
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into computer directly
8) Customizable
Specifications
Material:
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key(2.0mm) with etched or laser engraved graphics
- Touchpad: Synaptics high-sensitivity touchpad
Electrical Data
- Power supply voltage: DC 5 ± 5%
- Current rating: 20 mA
-Touchpad resolution:1000dpi
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics
- Operating temperature: -20 C to + 60 C
- Storage temperature: - 40 C to + 80 C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40 C: 21 days, IEC 60512-6
- Dry heat test at + 85 C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key:12015g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4
Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and dimension
- Weight: 2.2kg
- Dimension:
Front panel: 478.0 x 135.0 mm
Back panel: 502.0 x 159.0 mm, thickness:32.10mm(to the tallest component)
