Detailed Product Description

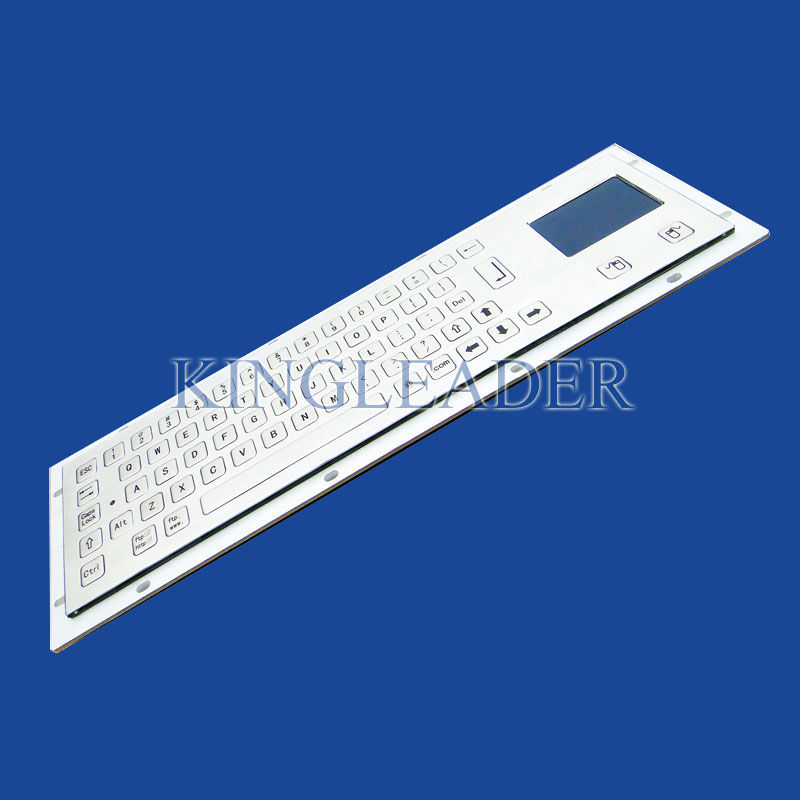

IP65 Waterproof vandalproof kiosk touchpad panel mount pc keyboard with flush/flat keys MKB-64FA-TP
Key Features:
1) 64 keys, with integrated touchpad;
2) Panel mount, installing from the back side
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other demanding applications.
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into the computers directly
8) Customizable
Specifications:
Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics
- Touchpad cover: Composite
Electrical Data
- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics
- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Touchpad
- Power supply voltage: 5 VDC ± 10%
- Current rating (active mode): 17 mA
- Interface: PS2 or USB
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative
- Tracking speed: Maximum 1, 016 m/sec
Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and dimension
- Weight: 1.8 kg
- Dimension: Front panel: 400.0x124.0x22.2mm
