Detailed Product Description

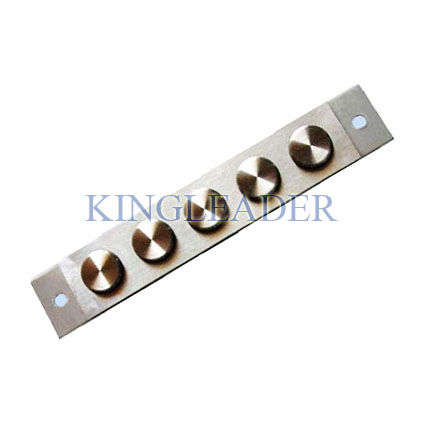

Metal Function Keypad with 5 rounded short-travel keys Application vending machines
Key Features:
5 rounded short-travel keys, crispy tactile feedback
Panel mount from the rear side
Exposed parts(front panel and keys) made of stainless steel, high resistance against destruction, rust etc
Dust-proof and liquid-proof, IP65 compliance after properly mounted
Application: ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.
Specifications:
Life cycle: >5 million operations
Key travel: 0.45mm
Actuation force: 15015g
Interface: USB or PS2
Working temperature: -20°C~60°C
Storage temperature: -40°C~80°C
Relative humility: 20~95%
Atmospheric pressure: 50-110 K Pa
Dimension: 156.00 x 27.00 mm(L x W) (front panel)
