Detailed Product Description

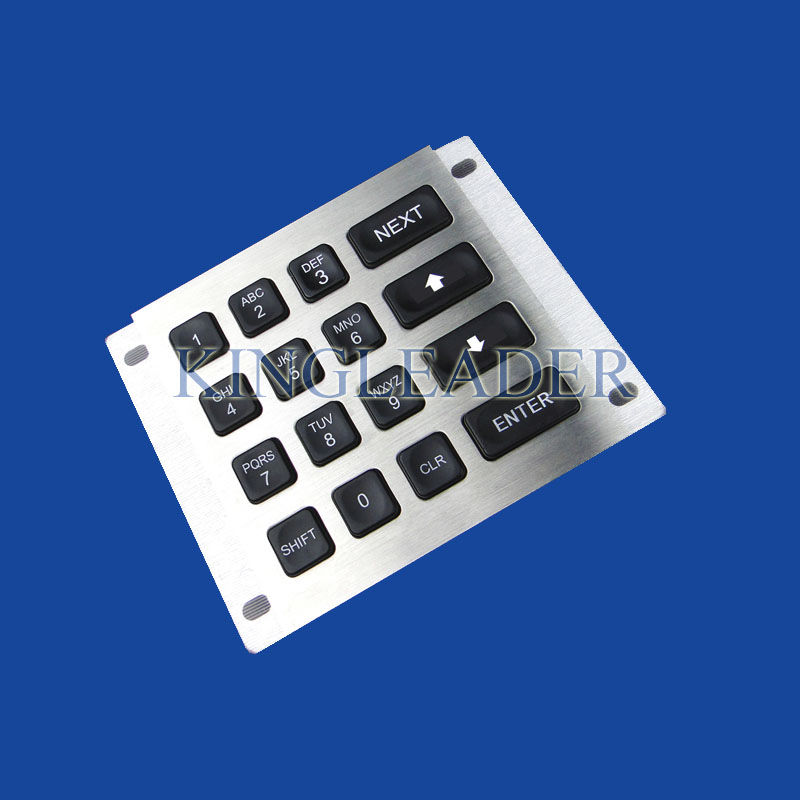

This keypad is specially designed for Security/access control system or other application in dark or low-light environment, it has 16 individually LED lit keys, featuring vandal-proof, water-proof and dust-proof
Key Features:
16 back-lit keys, 4 larger keys at the right column
Keys in 4 X 4 matrix
Laser-etched characters
Panel mount from the rear side
Concave on the key top to suit fingertip
Robust build against vandalism
Dust-proof and liquid-proof, IP65 compliance after properly mounted
Layout customizable according to customers request
Application:access control system or other application in dark or low-lit environment
Specifications:
Material:front panel:304 stainless steel;keys:high temperature polycarbonate;back panel:aluminum
Life cycle of keys: >5 million operations
Key travel: 2.0mm
Actuation force: 8015g
Interface: USB or PS2
Working temperature: -20°C~60°C
Storage temperature: -40°C~80°C
Relative humility: 20~95%
Atmospheric pressure: 50-110 K Pa
Color of key:silver or black
Color of front panel:silver or black
Color of backlight:green, blue or red
Dimension: 100.00 x 100.00 mm(W x D) (front panel)
