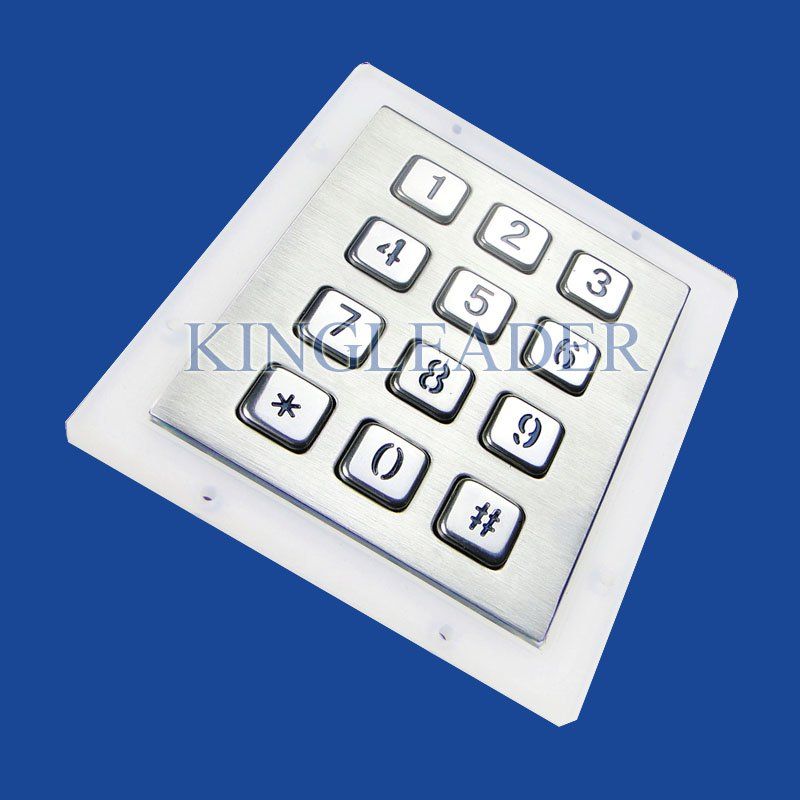

Key Features:
● 12 full travel and back-lit keys, all keys are in the same size
● Keys in 3 X 4 matrix
● Stamped characters
● Panel mount from the rear side
● Exposed parts(front panel and keys) made of stainless steel, high resistance against destruction, rust etc
● Dust-proof and liquid-proof, IP65 compliance after properly mounted
●Interface:USB or PS/2 or RS232 for option
● Layout customizable according to customer’s request
● Application:Security/access control device/payphone or other application in dark or low-lit environment
Specifications:
Material:Front panel and keys:stainless steel;back panel:aluminum
Life cycle: >5 million operations
Key travel: 2.0mm
Actuation force: 80±15g
Interface: USB or PS2
Working temperature: -20℃~60℃
Storage temperature: -40℃~80℃
Relative humility: 20~95%
Atmospheric pressure: 50-110 K Pa
Dimension:92.00 x 76.50 mm(W x D) (front panel)
