Detailed Product Description

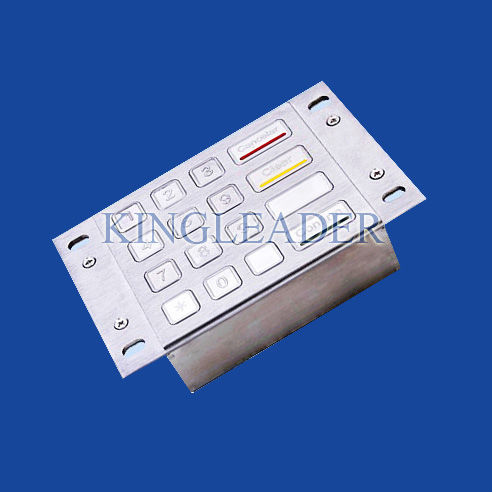

USB Metal keypad, metal numeric keypad, pin pad, kiosk pinpad MKP100B-16F
Key Features:
16 keys, good tactile feedback
12 keys at the left side are in one size and the rest 4 keys at the right are in another larger size, which makes them ideal for some special function keys such as Cancel, Correction, Enter etc
Keys in 4 X 4 matrix
Chemically-etched raised characters
Panel mount from the rear side
Exposed parts made of stainless steel, high resistance against destruction, rust etc
Dust-proof and liquid-proof, IP65 compliance after properly mounted
Layout customizable according to customers request
Application: ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.
Specifications:
Life cycle: >5 million operations
Key travel: 0.5mm
Actuation force: 15015g
Interface: USB or PS2
Working temperature: -20°C~60°C
Storage temperature: -40°C~80°C
Relative humility: 20~95%
Atmospheric pressure: 50-110 K Pa
Dimension: 100 x 91.50 mm(W x D) (front panel)
