Detailed Product Description

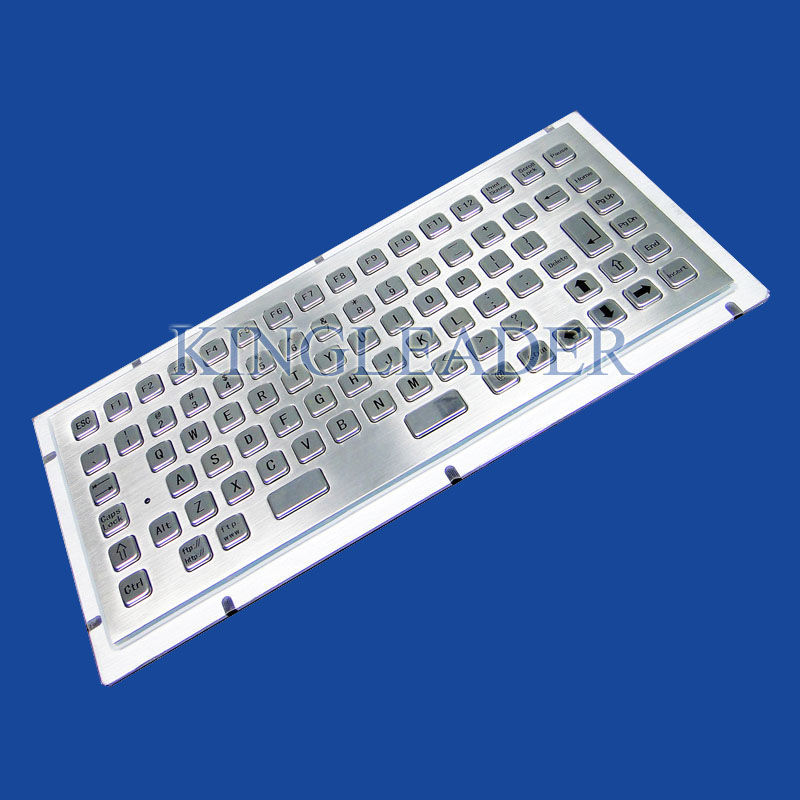

Rugged stainless steel, water-proof, vandal-proof keyboard with 86 customizable, protruding, full travel keys(12 function keys)
Key Features:
1) 86 keys(of them, 12 function keys), panel mount
2) Protruding full travel key (2.0mm) with etched graphics, excellent tactile feedback
3) Designed to operate in harsh environments, making it ideal for kiosks or other demanding applications in industrial environments
4) Built from stainless steel, high vandal-proof.
5) Dust-Proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface
7) Layout customizable upon request
Specifications:
Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
Electrical Data
- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliance
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B compliance
- Safety: EN 60950, CE compliance
Environmental Characteristics
- Operating temperature: -20 º C ~ + 60º C
- Storage temperature: - 40º C ~ + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for keys:120±15g
- Key travel: 2.0mm
- Lifetime: Min 5 millions actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and dimension
- Weight: 1.50kgs
- Dimension:
Front panel: 319.0x135.0mm
