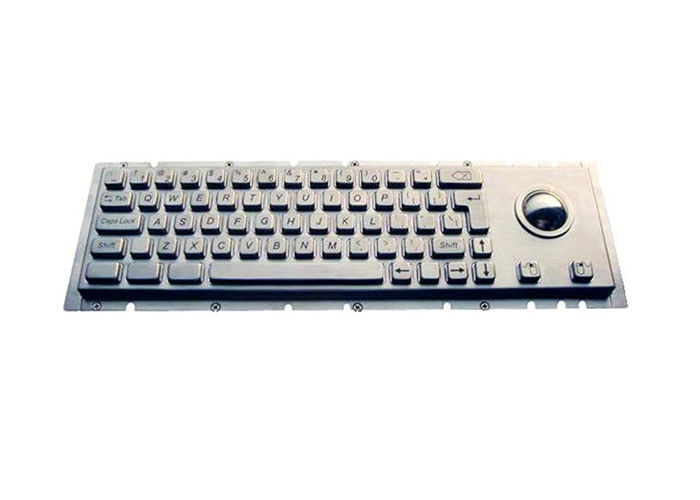

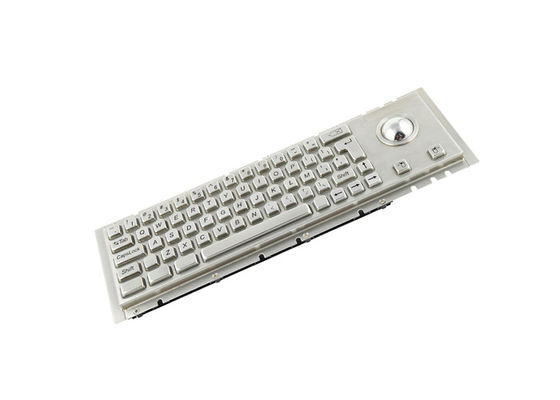

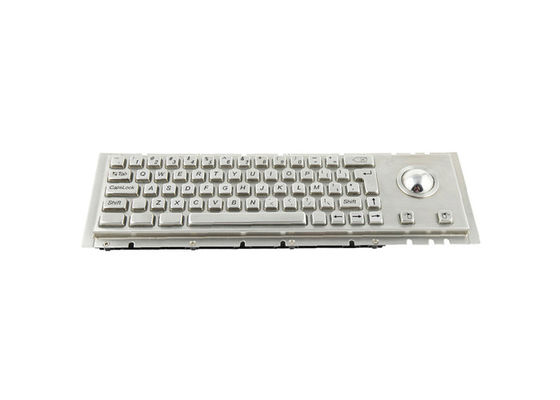

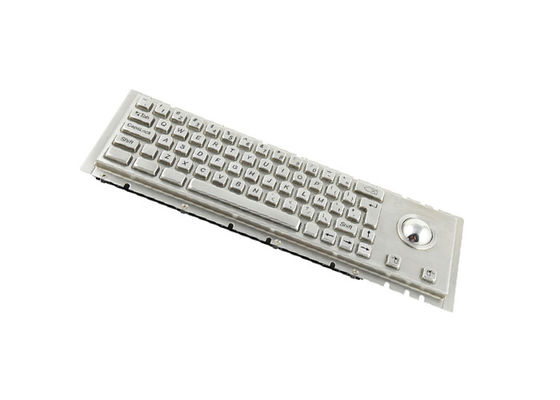

Panel Mounting 63 Cherry Keys Industrial Trackball Keyboard

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS
Model Number MKB-63CA-TB
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Keypad Button Material Stainless Steel
Number Of Keys 63 Mouse Type Trackball
Protection Level IP65 Mounting Method Panel Mounting(back Side)
High Light

63 Keys Industrial Trackball Keyboard

,

Cherry Keys Industrial Trackball Keyboard

,

IP65 Panel Mounting Trackball Keyboard

Leave a Message
Product Description

Industrial Keyboard with Good Feeling Touch Cherry Keys and Buily-in Trackball



MKB-63CA-TB

Key Features:

- 63 keys, built-in mechanical-switches with integrated optical trackball;
- Panel mount
- Full travel keys, excellent typing feel;
- Specially designed to operate in harsh environments, making them ideal for kiosks and other   applications in public places.
- Built from stainless steel, resistant to vandalism, corrosive, rust
- Dust-proof and liquid-proof, IP65 compliant
- USB or PS2 interface available

- Custom layout available



Specifications





Material

Face plate: 304 stainless steel

Keys: 304 stainless steel

Trackball: 304 stainless steel (Dia: 38mm)

Back plate: Aluminum







Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC Emission:EN55022(B)



Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6





Mechanical Data

Actuation force:80g

 Key travel: 4.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX



Weight and Dimension

Weight: 1.80kg

Face plate:372.00 x 102.00 mm

Overall:394.00 x 123.80 mm

Thickness:33.80 mm ( to where the tallest part extends)

Reliability

MTBF:>20, 000 hours

MTTR:<30 minutes
