Customized Industrial Numeric Keypad Rugged Waterproof Panel Mount

Place of Origin	China
Brand Name	KINGLEADER
Certification	CE,FCC,ROHS
Model Number	MKP110-16BL
Minimum Order Quantity	1pcs
Price	US$40-80
Packaging Details	1pcs/box, 10pcs/ctns
Delivery Time	20days
Payment Terms	T/T,Paypal, Western Union, L/C, D/A, D/P, , MoneyGram
Supply Ability	2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material Of Front Panel	304 Stainless Steel	Mounting Method	Panel Mount
Matrix	4x4	Interface	11 Pin Connector
Layout	Customization Available	Number Of Keys	16 Keys
High Light	Customized Industrial Numeric Keypad , Rugged Waterproof Keypad Panel Mount , Panel Mount Rugged Numeric Keypad

Leave a Message

Product Description

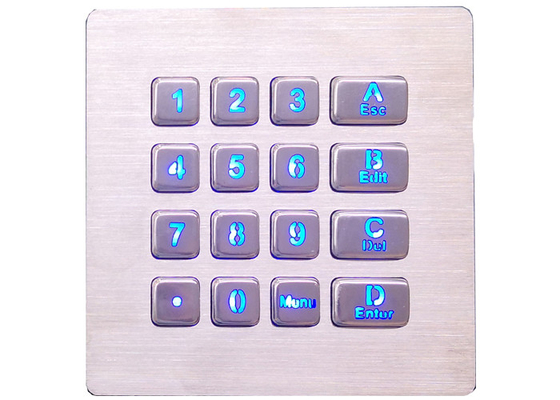

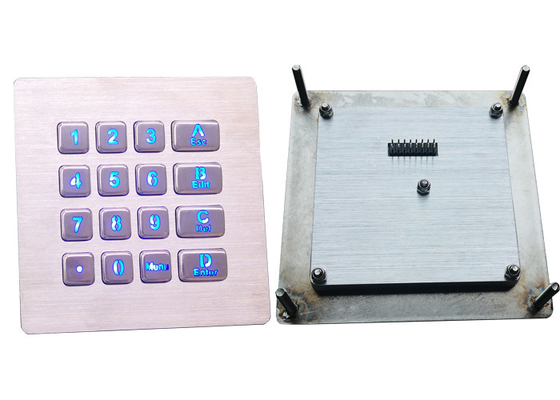

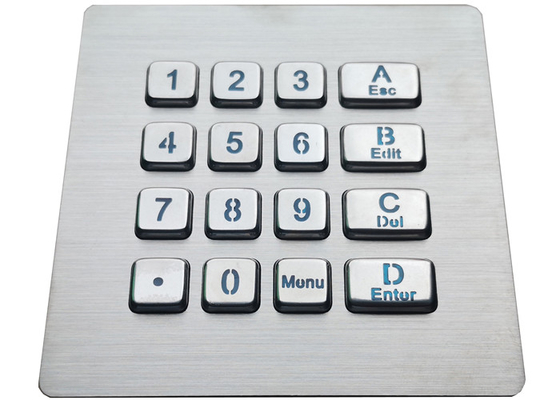

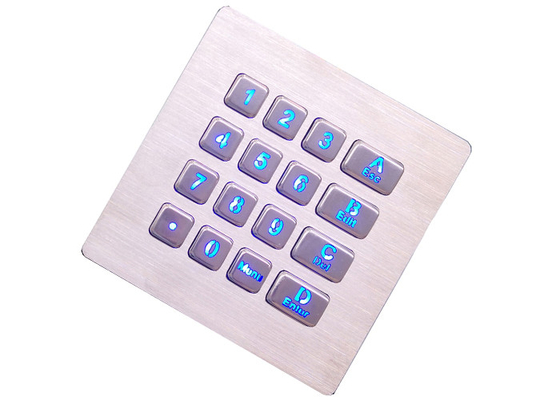

Customized Industrial Numeric Keypad with 16 Backlited Keys Used for Low-lit Environment

Part Number:MKP110-16BL

Door access keypad with Keys and front plate made of 304 stainless steel

Items	Specifications
Product Description	Rugged stainless steel, waterproof, vandal-proof, panel-mount keypad with 16 backlit keys
Application	-All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk etc -Workstations or machines in factories -Some special locations like toll gate,gas station,airport,seaport,underground mine etc.
Key Features	- 16 backlit keys makes it ideal for application in low-lit environment - Panelmount from the front - Built to operate in harsh environments - Made of stainless steel,high resistance against vandalism - Dust-proof and liquid-proof, meet IP65 requirement - PS/2 or USB interface for option - Customizable layout

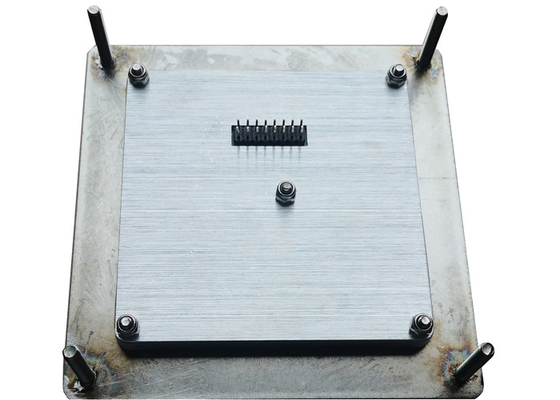

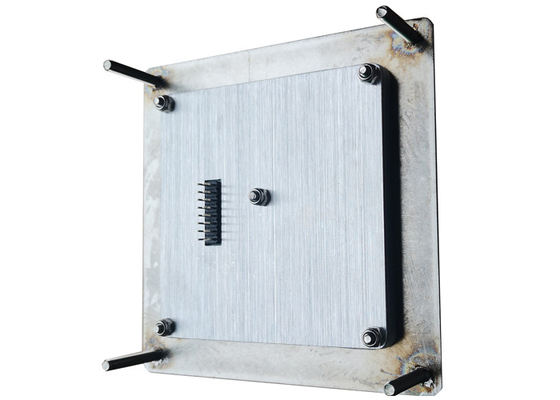

Material	- Front panel & Keys: Brushed stainless steel - Back panel: Aluminum alloy
Electrical Data	- Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB or PS2 - EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 - FCC: Part 15, class B - Safety: EN 60950, CE compliant
Environmental Characteristics	- Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data	- Actuation force for key:120±15g - Key travel:2.00mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System	- PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability	-MTBF:>20,000 hours -MTTR:<30 minutes
Certification	FCC,CE,RoHS
Dimension	Front panel: 110.00 x 110.00mm
Weight	0.30 kgs

Customized Industrial Numeric Keypad Rugged Waterproof Panel Mount 0
