Rugged Panel Mount Metal Keypad Stainless Steel Waterproof 20mA

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS
Model Number MKP60-12F
Minimum Order Quantity 1
Price US$30-60
Packaging Details One piece packed in a box,then suitable number of boxes packed in a master box
Delivery Time 1-2 weeks
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 3000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Material Of Keycap Stainless Steel
Number Of Keys 12 Flat Keys Layout Standard Or Customized
Protection Level IP65 Color Silver
High Light

Rugged Panel Mount Metal Keypad

,

Waterproof Panel Mount Metal Keypad

,

20mA Stainless Steel Keypad

Leave a Message
Product Description

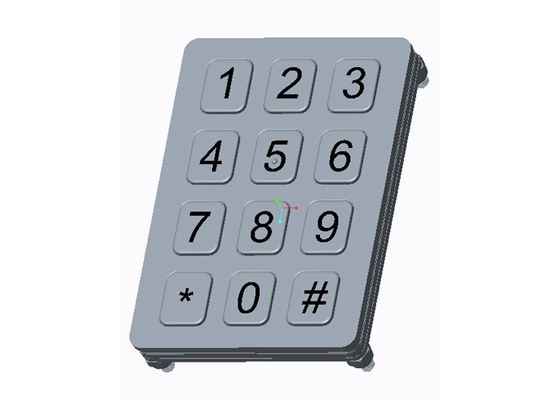

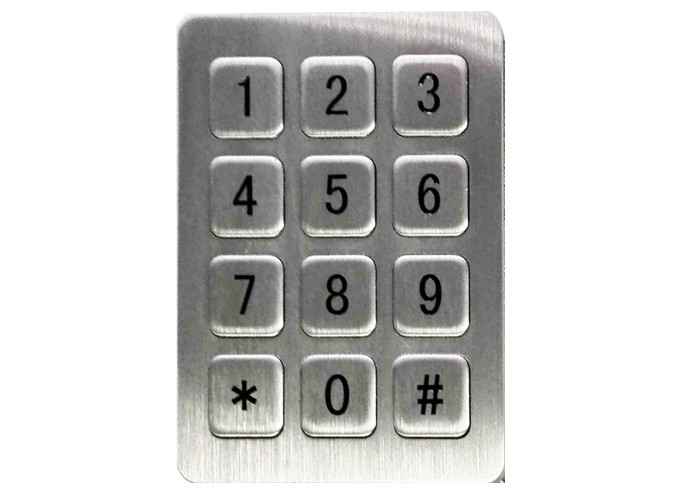

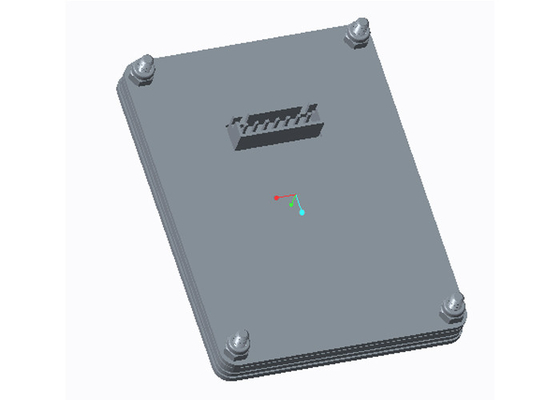

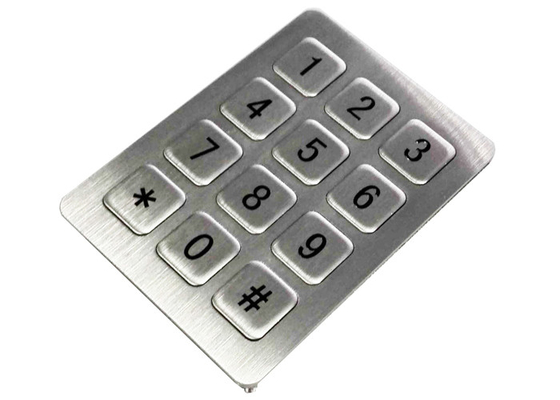

Rugged Industrial Stainless Steel Panel Mount Metal Keypad with 12 Flat Keys



PN:MKP60-12F



Items Specifications
Product Description
  • Rugged stainless steel, waterproof, vandal-proof, panel-mount keypad with 12 flat keys
Application

- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,vending kiosk,gaming kiosk etc

- Workstations or machines in factories

- Access control panel

- Some special locations like toll gate,gas station,airport,seaport,underground mine etc

Key Features

- Small and cute design

- 12 flat keys,crispy tactile feedback,all keys in the same size

- Keys in 3x4 matrix

- Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc

- Chemically-etched characters and legends make it more durable against wearness or long use

- Panelmount from the front
- Built to operate in harsh environments

- Made of stainless steel,high resistance against vandalism,meet IK47 standard
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB or PIN interface for option
- Layout customable according to customer’s request

Material - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:150±15g
- Key travel:0.45mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification
  • FCC,CE,RoHS
Dimension
  • Front panel: 60.00 x 80.00mm(W x H)
Weight
  • 0.20 kgs
