Rugged Vandal - Proof Numeric Keypad With 16 Keys , Ideal For Access Control Phone System

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKP79-16
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Zink Alloy Mounting Method Panel Mount
Number Of Keys 16 Keys Matrix 4x4
Interface 10Pin Connector Layout Customization Available
High Light

metal keypad

,

computer numeric keypad

Leave a Message
Product Description

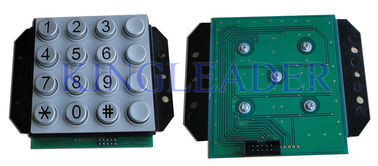

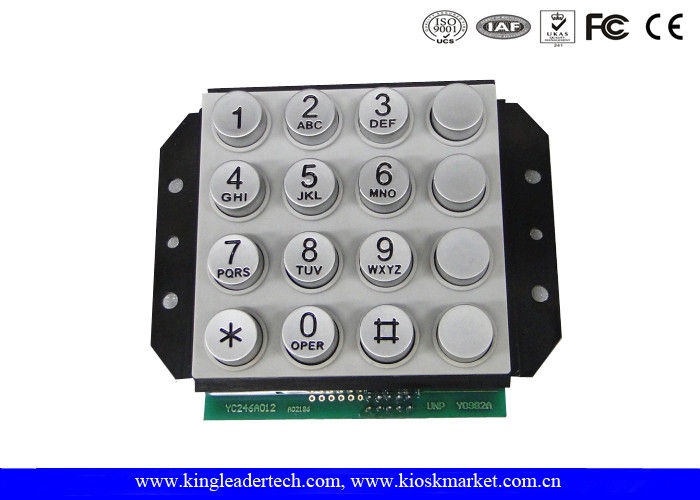

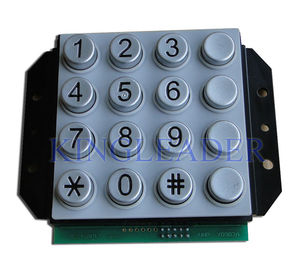

Rugged Vandal - Proof Numeric Keypad With 16 Keys , Ideal For Access Control Phone System



Part Number:MKP79-16



Door access keypad with 4 function keys



Key Features:



● 16 full travel  keys,all keys are in round

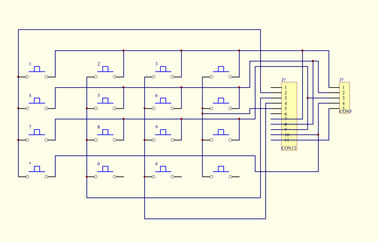

● Keys in 4 X 4 matrix

● Etch character

● Panel mount from the rear side

●Vandal-proof

● Layout customizable according to customer’s request

● Application:Door access control system or vending system or other application



Technical Specification

Material

Front panel & Keys

Zink Alloy

Number of Keys

16

Matrix

4 x 4

Function

NON backlight

Electrical Data

Interface

 10-pin

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Dimension

79.60 x 76.00 mm(W x D) (front panel)

Application

Door access control system or vending system or other application
