Detailed Product Description

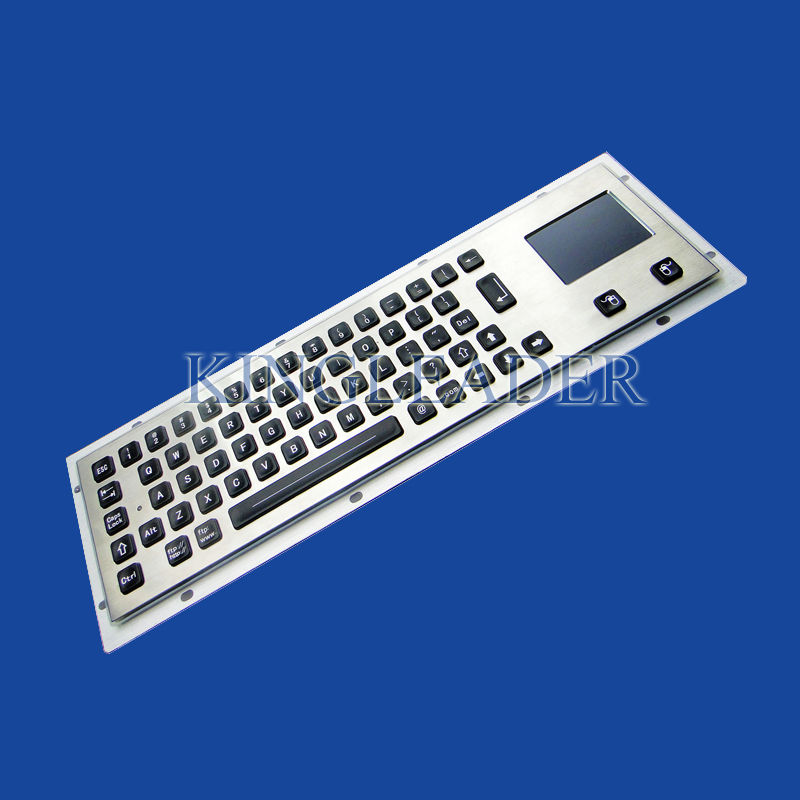

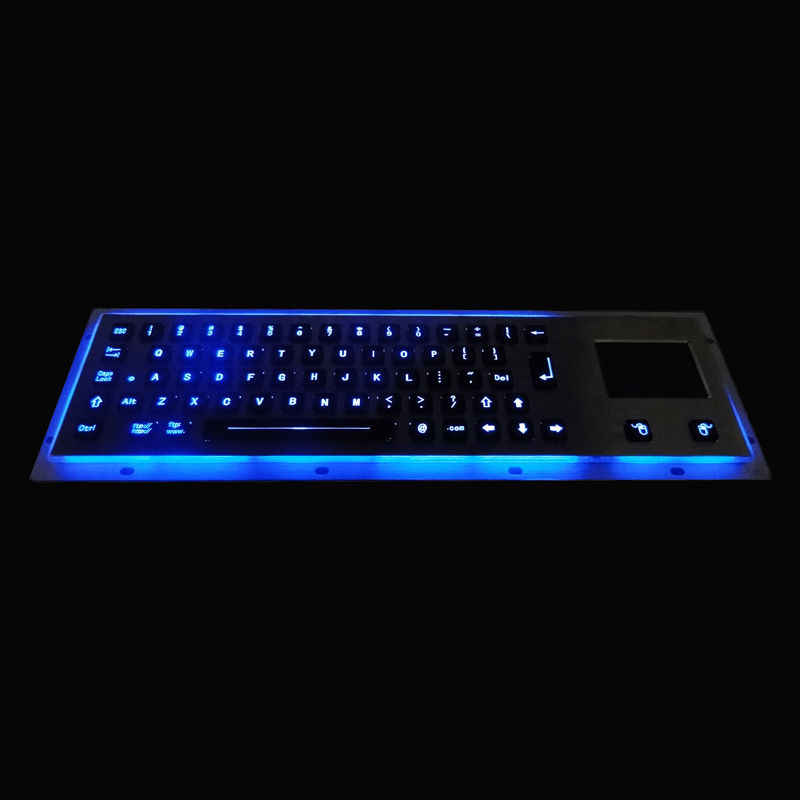

Illuminated Brushed metal pc keyboard integrated touchpad with 65 full travel backlit keys
Key Features:
1) 65 LED individually-lit keys
2) with integrated touchpad;
3) Panel mount, installing from the rear side
4) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
5) Specially designed to operate in harsh and low-lit environments
6) Robust construction, high resistance against vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
8) PS/2 or USB interface for option
9) Customizable layout upon customer’s request
Specifications:
Material
- Front panel: Brushed stainless steel
- Keys:High temperature-resistant polycarbonate
- Back panel: Aluminum alloy
Electrical Data
- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics
- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Touchpad
- Power supply voltage: 5 VDC ± 10%
- Current rating (active mode): 17 mA
- Interface: PS2 or USB
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative
- Tracking speed: Maximum 1, 016 m/sec
Compatible Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Color
Keycap:black, grey or silver
Backlight:blue, green or red
Weight and dimension
- Weight: 1.8 kg
- Dimension: Front panel: 400.0x124.0x22.2mm
