Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys

China Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys supplier
Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys supplier Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys supplier Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys supplier Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys supplier Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys supplier Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys supplier

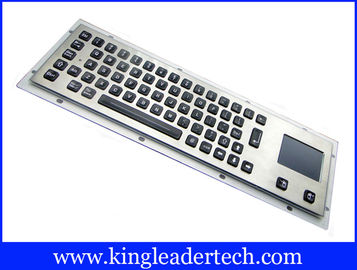

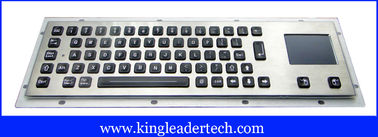

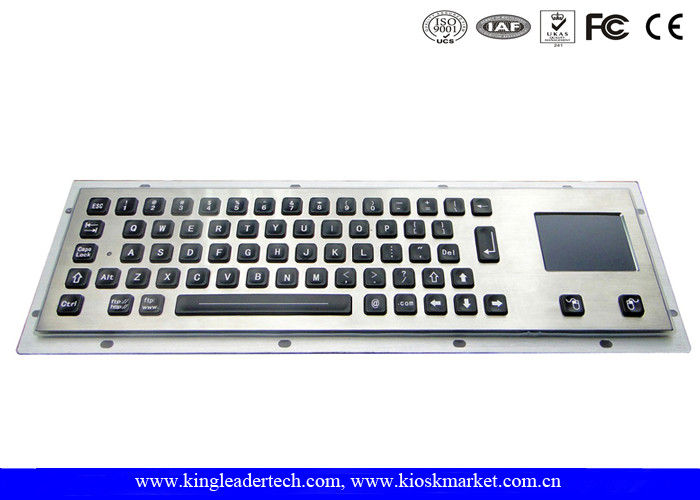

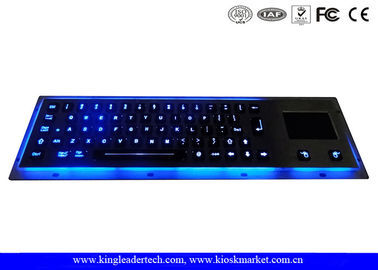

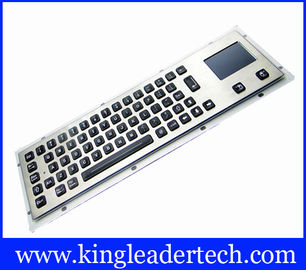

Large Image :  Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys

Product Details:

Place of Origin: China
Brand Name: KINGLEADER
Certification: CE,FCC,ROHS
Model Number: MKB-64A-TP-BL

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Delivery Time: 20days
Payment Terms: T/T,Paypal
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel+PC Keycap Mounting Method: Panel Mount From The Rear Side
Interface: USB Or PS/2 Key: Led Backlight
Backlight Color: Blue,White Or Red Number Of Keys: 64

Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys

PN:MKB-64A-TP-BL
Key Features:
1) 65 LED individually-lit keys

2) with integrated touchpad;

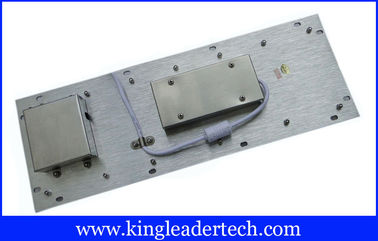

3) Panel mount, installing from the rear side
4) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
5) Specially designed to operate in harsh and low-lit environments

6) Robust construction, high resistance against vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
8) PS/2 or USB interface for option

9) Customizable layout upon customer’s request



Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Back panel: Aluminum alloy

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Touchpad

Power supply voltage: 5 VDC ± 10%

Current rating (active mode): 17 mA

Interface: PS2 or USB

X/Y position sensing resolution: 40 counts/mm

X/Y position reporting: Relative

Tracking speed: Maximum 1, 016 m/sec

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Color

Keycap:black, grey or silver

Backlight:blue, green or red

Weight and Dimension

Weight: 1.80kg

Dimension: Front panel: 400.0x124.0x22.2mm



Waterproof Illuminated Metal Keyboard With Touchpad And 64 Led Backlit Keys
