Detailed Product Description

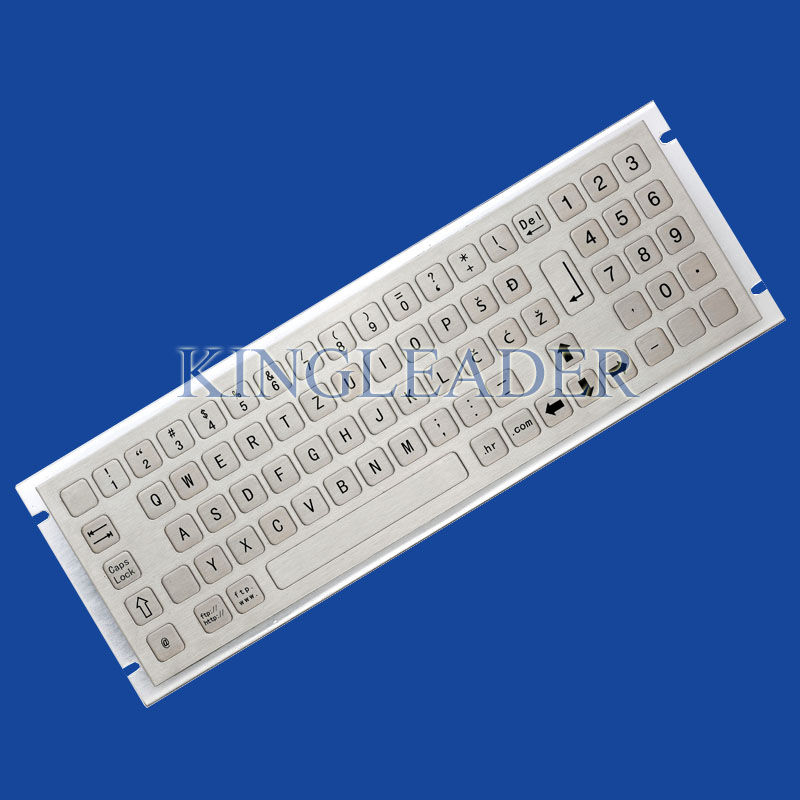

mini panel mount Back Panel: Aluminum alloy computer Keyboard MKB-N79FA
Key Features:
-79 keys, with integrated numeric keypad;panel mount
-Flat/non-protruding short travel(0.45mm)keys, excellent tactile feel
-Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places
-Built from stainless steel, high vandal-proof
-Dust-proof and liquid-proof, meet IP65 requirement
-PS/2 or USB interface, easy to plug into computers directly
-Customizable
Specifications:
Material
- Front Panel: 304 stainless steel
- Key: 304 stainless steel
- Back Panel: Aluminum alloy
Electrical Data
- Power supply voltage: DC 5 ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics
- Operating temperature: -20 C to + 60 C
- Storage temperature: - 40 C to + 80 C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40 C: 21 days, IEC 60512-6
- Dry heat test at + 85 C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key:15015g
- Key travel: 0.45mm
- Lettering: Chemically etched graphics with permanent ink
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4
Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and dimension
- Weight: 1.1kg
- Dimension: 320 x 105 mm
