Panel Mount Multimedia Kiosk Keyboard Panel Mount With Number Keypad In Flat Keys
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xNumber Of Keys | 79 Keys | Material Of Front Panel | Stainless Steel |
---|---|---|---|
Material Of Back Panel | Aluminum Alloy | Material Of Keys | Stainless Steel |
Key Switch | Metal Dome | Interface | USB Or PS/2 |
Mounting Method | Panel Mount From The Rear Side | Layout | Standard English Or Customized |
Highlight | panel keyboard,keyboard rackmount |

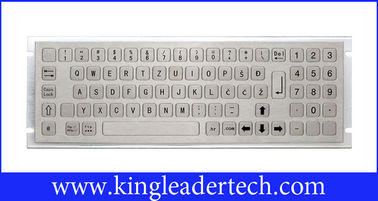

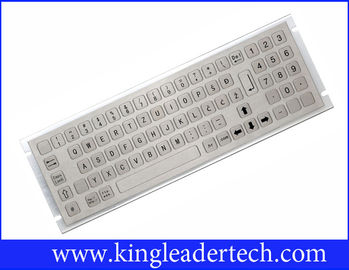

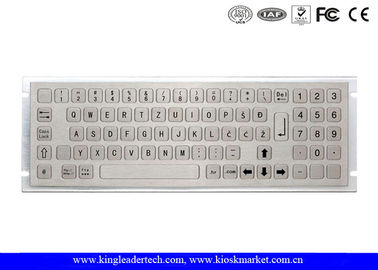

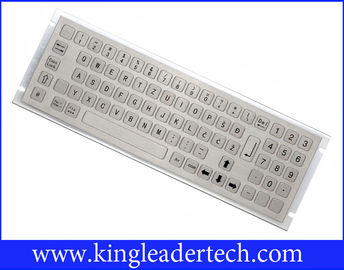

Panel Mount Multimedia Kiosk Keyboard Panel Mount With Number Keypad In Flat Keys
PN:MKB-N79FA
Key Features:
-79 keys, with integrated numeric keypad;panel mount
-Flat/non-protruding short travel(0.45mm)keys, excellent tactile feel
-Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places
-Built from stainless steel, high vandal-proof
-Dust-proof and liquid-proof, meet IP65 requirement
-PS/2 or USB interface, easy to plug into computers directly
-Customizable
Specifications | |
Material | Front Panel: 304 stainless steel |
Key: 304 stainless steel | |
Back Panel: Aluminum alloy | |
Electrical Data | Power supply voltage: DC 5 ± 5% |
Current rating: 20 mA | |
Touchpad resolution:1000dpi | |
Interface: USB or PS2 | |
EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 |
|
FCC: Part 15, class B | |
Safety: EN 60950, CE compliant | |
Environmental Characteristics | Operating temperature: -20 C to + 60 C |
Storage temperature: - 40 C to + 80 C | |
Saline mist: 96 hours, IEC 60512-6 | |
Damp heat test at + 40 C: 21 days, IEC 60512-6 | |
Dry heat test at + 85 C: 10 days, IEC 60512-6 | |
Mechanical Data | Actuation force for key:150±15g |
Key travel: 0.45mm | |
Lifetime (cycles): Min 5, 000, 000 actuations | |
Sealing protection: IP65/NEMA4X from the front | |
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 | |
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 | |
Operation system | PS2: Win NT4, 98SE, 98ME, 2000, XP |
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX | |
Weight and Dimension | Weight:1.10kg |
Dimension: 320 x 105 mm |
