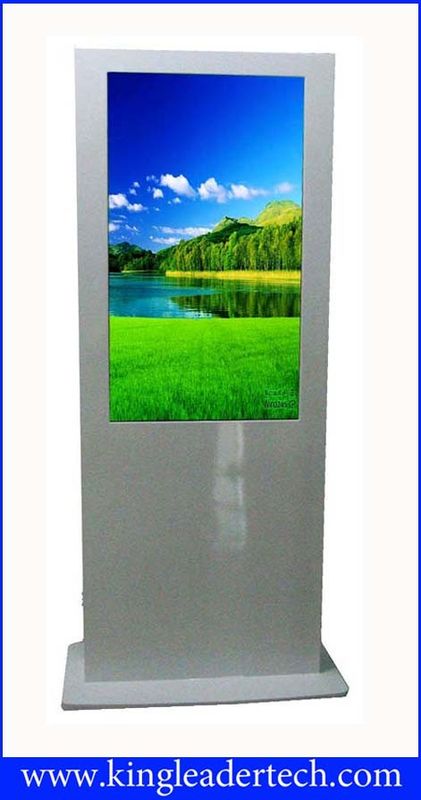

46” 1080P WI-FI / 3G, Digital Signage for Advertising with Android System, Multifunction Android Kiosk

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number TSK1001-46D
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/ctn
Delivery Time 3 weeks
Payment Terms FOB
Supply Ability 600pcs/month
Product Details
High Light

screen kiosk

,

advertising kiosk

Leave a Message
Product Description

46” 1080P WI-FI / 3G, Digital Signage for Advertising with Android System, Multifunction Android Kiosk



Key Features

●46’ Large TFT LED screen,low energy comsuption

● WIFI avalible, 3G(Option)

●HDMI port, support up to 1080P
● High-sensitivity,high light-transmittance,anti-glare,vandal-proof  IR touchscreen  (Option)

●support HDMI/VGA/AV port

● Durable steel enclosure,powder-coated or paint finish

● Built-in hi-fi amplified speakers

● Customization available upon request

● Applications: used in public places,such as shopping mall,airport,coach station,railroad station,ferry terminal





Technical Specifications

Super Bright LED Display

- Resolution: 1920x1080

- Brightness: 500 nits

- Contrast ratio: 1400:1

- Response time :8 ms





Touch Screen (Option)

- Rain-proof IR touch screen

- Resolution: 4096*4096

- Deviation of error: <2mm

- Light Transmittance: ≥ 92%

- Surface Hardness:  7 Mohs scale

- Lifetime:50,000,000 times at one single location

- Response time: less than 16 ms

- Touch activation force: 10~100g

Enclosure

- Rain/snow-proof durable steel enclosure (different colors for option)

- Built-in power control panel, and hi-fi speakers.

- Two cooling fans for computer board and main body separately

- RJ45/RJ11 interface

- Large access doors with tubular locks/keys

Mother Board

-Tablet mainboard

-CPUAllwinner A10  1.0 GHZ

-RAM: 512M

-Storage memory: 512M

-WIFI/ethernet

Compatible Operation System

Android V4.0

Working Voltage

DC 12V



Ambient Environment

  • WorkingTemperature

-35℃~+75℃;RelativeHumidity: 30%~90%

  • Storage Temperature:

-40℃~+80℃;Relative Humidity: 5%~95%

Dimensions

  • 185(height) x 95(width) x 28(depth) CMs
  • Packing dimension: 195 x 105x 38cm



Interface:

2x USB

 2XDB9

 1x SD/TF card slot,support up to 32G

 1x HDMI, support up to 1080P

1x RJ45, 10M/100M

1x LVDS

1x 3.5mm Audio output jack
