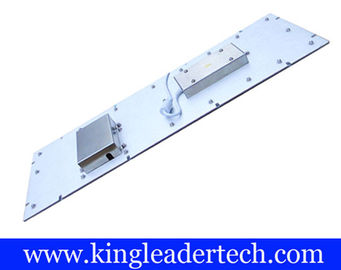

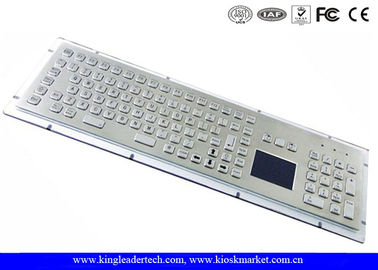

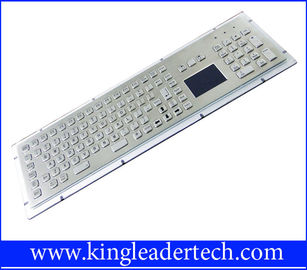

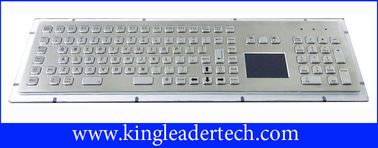

Fn Key And Number Keypad Dust-Proof Industrial Keyboard With Touchpad Liquid-Proof In PS/2 Or USB Interface

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKB-FN103A-TP
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month
Product Details
Number Of Key 103 Keys,Including FN Keys & Number Keypad Interface USB Or PS/2
Material Of Front Panel Stainless Steel Material Of Back Panel Aluminum Alloy
Mouse Touchpad Mounting Method Panel Mount From The Back Side
Protection Level IP65 Layout US English Or Customized
High Light

keyboards with touchpads

,

computer keyboard with touchpad

Leave a Message
Product Description

Fn Key And Number Keypad Dust-Proof Industrial Keyboard With Touchpad Liquid-Proof In PS/2 Or USB Interface



PN:MKB-FN103A-TP

Key Features:

1) Built from stainless steel, high vandal-proof.
2) Integrated touchpad and numeric keypad;
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
5) 103 keys(of them 12 function keys), panel mount.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into computer directly
8) Customizable



Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics

Touchpad cover: Composite

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.00mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

Weight: 2.20 kg

Dimension:
Front panel: 478.0 x 135.0 mm
Back panel: 502.0 x 159.0 mm, thickness:32.10mm(to the tallest component
