IP68 FCC 100mA USB Silicone Rubber Keyboard 87 Keys For Hard Environment

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,RoHs,IP68
Model Number SKB-86-TP
Minimum Order Quantity 1pcs
Price US$40-60
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 3000pcs/month
Product Details
Material Silicone Rubber Number Of Keys 87 Keys
Protection Level IP68 Layout Standard English Or Customized
Interface USB Mounting Desktop
High Light

100mA USB Silicone Rubber Keyboard

,

IP68 FCC Silicone Rubber Keyboard

,

Medical Silicone Keyboard 87 Keys

Leave a Message
Product Description

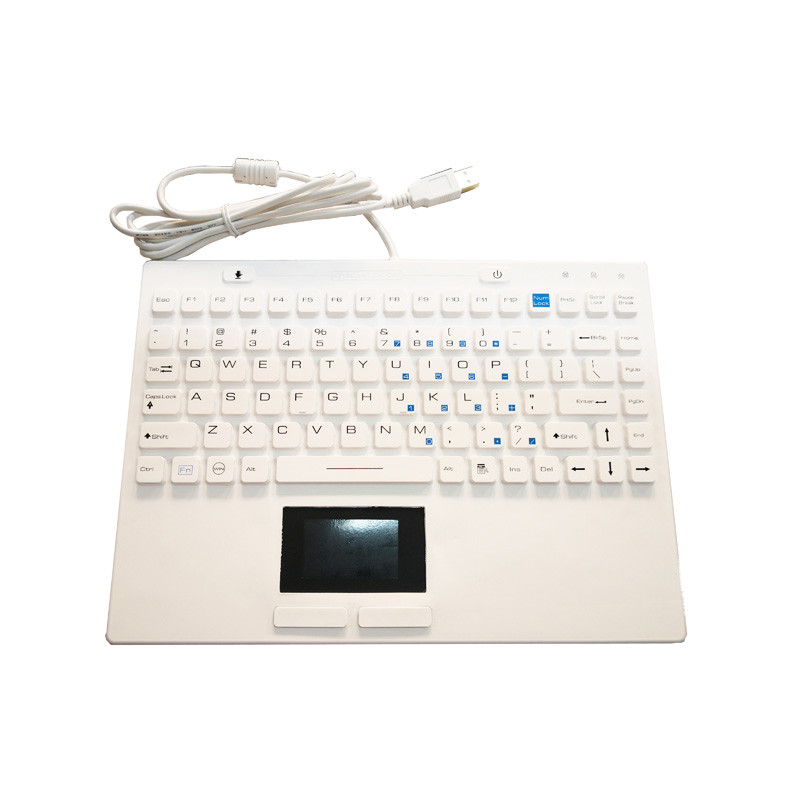

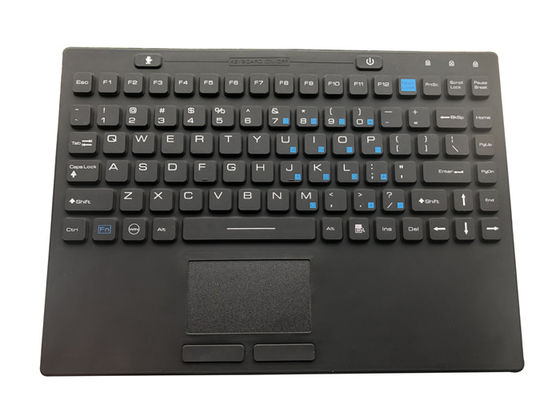

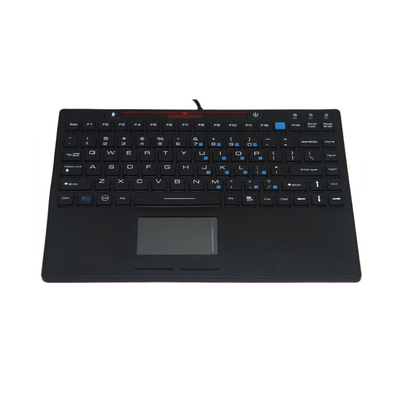

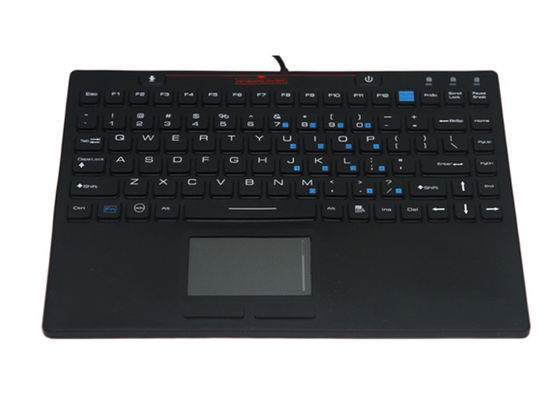

Silicone Medical Keyboard with Built In Touchpad Used for Hard Environment



Super slim,washable silicone keyboard,featuring ON/OFF switch,built-in touchpad,F1~F12 function keys and IP68 compliance



Part Number: SKB-86-TP





Typical application:

Used in harsh industrial, military environment OR other medical environments where harmful bacteria exists


Specifications:



- Main power ON/OFF switch
- Built-in touchpad
- Number of Keys: 87 keys including 12 function keys
- Key Lifespan:>10 millions actuations
- Seal Protection level: IP68
- Interface: USB
- Layout: US English or customization
- Compatibility: Microsoft® Windows 7/Vista®/XP/2000/ME/98
- Operating Temperature:-10℃~+65℃
- Dimensions: 298 x 213 x 11mm (L x W x H)
- Color: Custom color available
- Certification:CE,FCC,ROHS,IP68

Items Specifications
Key Feature

- Main power ON/OFF switch

- Built-in touchpad

- Number of Keys: 87 keys including 12 function keys

- Use of antimicrobials to contain reproduction of harmful bacterials

- Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists

- Custom color available

Material - Silicone
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: <=100mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force: 90 ±15g
- Key travel: 1.50mm ±0.5mm
- Lifetime (cycles): Min 10, 000, 000 actuations
- Sealing protection: IP68
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification FCC,CE,RoHs
Dimension -298.00(L) x 213.00(W) x 11.00(T) mm
Weight 0.85 kgs



IP68 FCC 100mA USB Silicone Rubber Keyboard 87 Keys For Hard Environment 0
