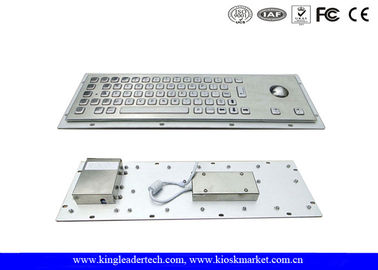

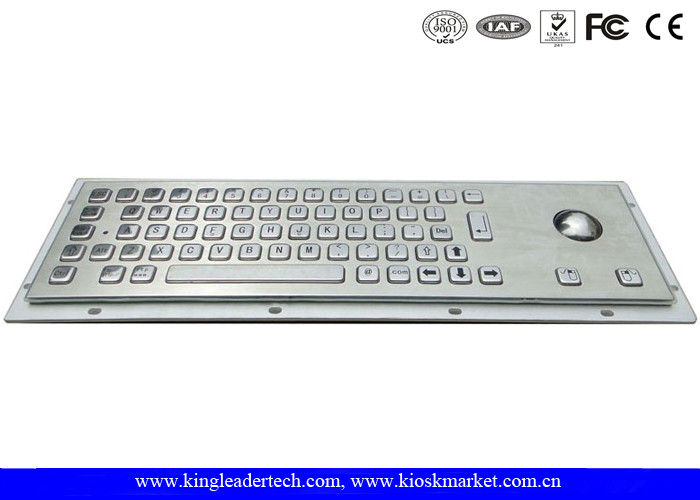

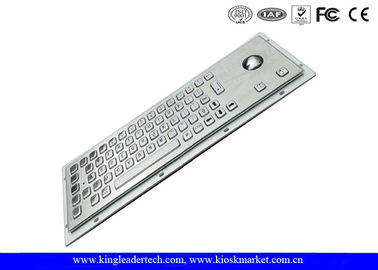

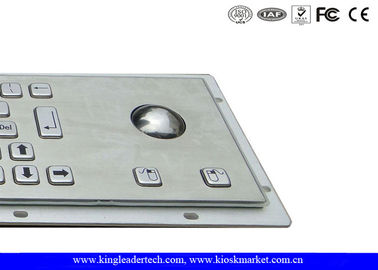

Kiosk Keyboard And Trackball Keyboard Stainless Steel With Pointing Devise

Kiosk Keyboard And Trackball Keyboard Stainless Steel With Pointing Devise
Kiosk Keyboard And Trackball Keyboard Stainless Steel With Pointing Devise Kiosk Keyboard And Trackball Keyboard Stainless Steel With Pointing Devise Kiosk Keyboard And Trackball Keyboard Stainless Steel With Pointing Devise Kiosk Keyboard And Trackball Keyboard Stainless Steel With Pointing Devise

Large Image :  Kiosk Keyboard And Trackball Keyboard Stainless Steel With Pointing Devise Get Best Price

Product Details:
Place of Origin: China
Brand Name: KINGLEADER
Certification: CE,FCC,ROHS
Model Number: MKB-64A-TB
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Delivery Time: 20days
Payment Terms: T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000pcs/month
Detailed Product Description
Material Of Front Panel: Stainless Steel Keypad Button Material: Stainless Steel
Interface: USB,PS/2 Or USB+PS/2 Protection Level: IP65
Mouse: Optical Trackball Application: Kiosk Or Industrial Application
High Light:

trackball keyboard

,

keyboard and trackball

Kiosk Keyboard with Pointing Devise Trackball made in Metal Stainless Steel



MKB-64A-TB





Items Specifications
Key Features

- 64 keys, with integrated optical trackball;
-Panel mounted (mounted from the back side)

- Full travel(2.0mm)keys, excellent tactile feedback

- Etched graphics with permanent ink
- Specially designed to operate in harsh environments, making it ideal for kiosk and other applications in harsh environment.
- Built from stainless steel, high vandal-proof.
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option
- Customizable layout/characters



Material - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Trackball: Stainless steel trackball (Dia: 38mm)
Electrical Data -- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Certification:CE,FCC,RoHs
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification FCC,CE,RoHs
Dimension

Front panel: 392.00 x 110.00 mm
Back panel: 416.00 x 134.00 mm

Thickness: 32.20mm

Weight

1.80 kgs
