Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk

Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk
Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk

Large Image :  Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk Get Best Price

Product Details:
Place of Origin: China
Brand Name: KINGLEADER
Certification: CE,FCC
Model Number: MKP100B-16F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Delivery Time: 20days
Payment Terms: T/T,Paypal
Supply Ability: 3000pcs/month
Detailed Product Description
Material Of Front Panel: Stainless Steel Material Of Back Panel: Aluminum Alloy
Number Of Keys: 16 Keys Matrix: 4x4
Interface: USB Or PS/2 Or RS232 Or 8Pin Connector Layout: Customization Available
High Light:

metal keypad

,

computer numeric keypad

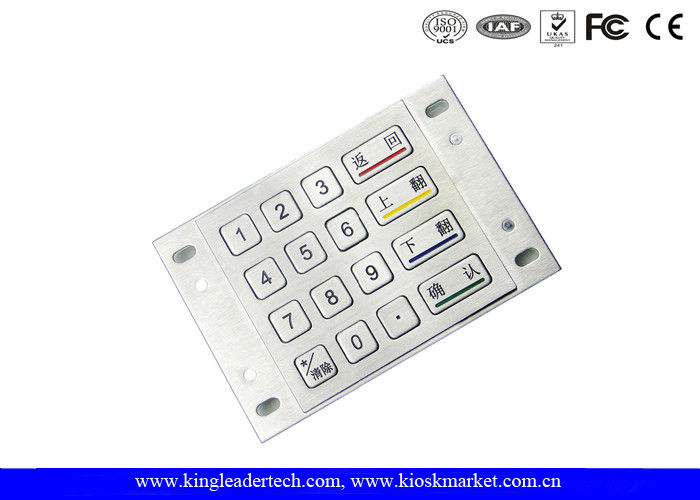

Panel Mount Numeric Metal Keypad In 4 x 4 Matrix For Game Machine And Kiosk



MKP100B-16F

Key Features:



1) 16 keys, good tactile feedback
2) 12 keys at the left side are in one size and the rest 4 keys at the right are in another larger size, which makes them ideal for some special function keys such as Cancel, Correction, Enter etc
3) Keys in 4 X 4 matrix
4) Chemically-etched raised characters
5) Panel mount from the rear side
6) Exposed parts made of stainless steel, high resistance against destruction, rust etc
7) Dust-proof and liquid-proof, IP65 compliance after properly mounted
8) Layout customizable according to customers request
9) Application: ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.


Technical Specification

Material

Front panel & Keys

304 stainless steel

Number of Keys

16

Matrix

4 x 4

Function

Non backlight

Electrical Data

Interface

USB or PS/2 or RS232(With electronic controller board)

8PIN connector (Without electronic controller board)

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

0.45mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Layout

Customizable available

Dimension

100.00 x 91.50 mm (W x D) (front panel)

Application

ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.
