| Brand Name: | KINGLEADER |
| Model Number: | MKB-FN103A-TB-B-2 |
| MOQ: | 1pcs |
| Price: | US$195-250/pc Exworks |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, T/T, Western Union |

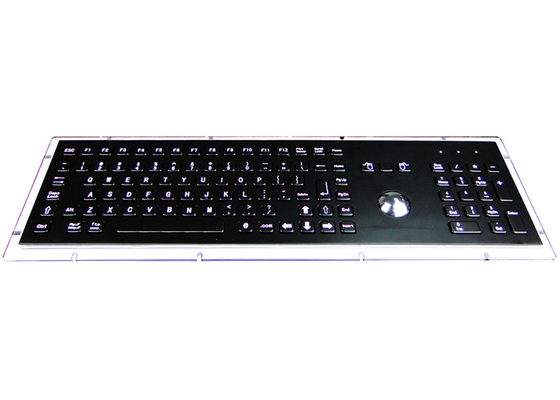

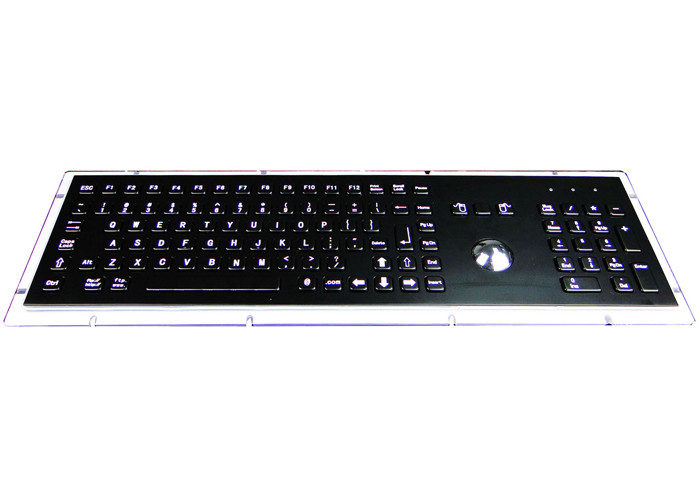

Electroplated Black Industrial Metal Keyboard with Full Keys and Optical Trackball Mouse
| Items | Specifications |
| Product Description | - Electroplated black,rugged stainless steel, water-proof, vandal-proof, panel mount keyboard with 103 customizable,full travel keys, integrated OPTICAL trackball,12 function keys and numeric keypad |
| Application |
- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,ATM,ADM,CDM,unattended payment terminal etc - Workstations or machines in factories - Some special locations like toll gate,gas station,airport,seaport,underground mine etc. |
| Key Features |

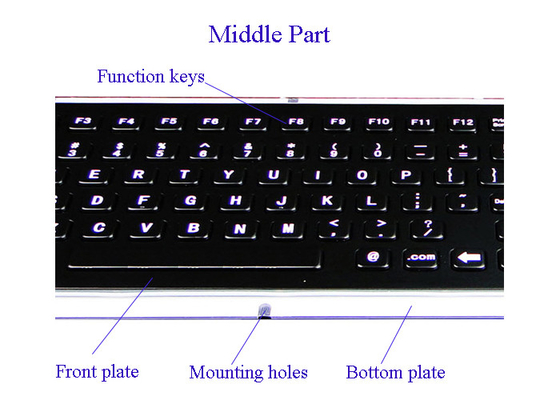

- 103 keys(of them 12 function keys) - Panel mount from the rear side - Etched characters and graphics makes it durable for long use |
| Material |

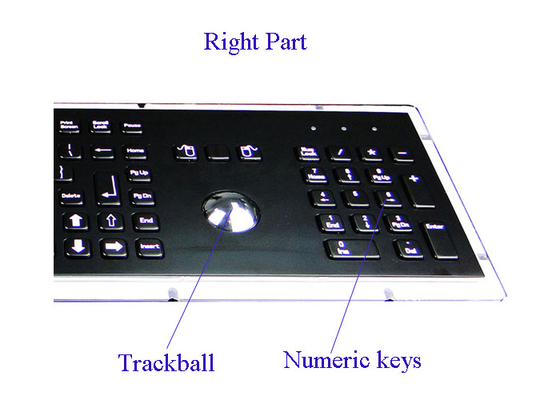

- Front panel & Keys: Brushed stainless steel - Trackball: Stainless steel(Dia: 38mm) |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB or PS2 - EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 - FCC: Part 15, class B - Safety: EN 60950, CE compliant |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force for key:120±15g - Key travel: 2.0mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | -FCC,CE,RoHS |
| Dimension | -Front panel: 478.00 x 135.00 -Back panel: 502.00 x 159.00, thickness:49.10mm (to the tallest component) |
| Weight | -2.20 kgs |
|
