| Brand Name: | KINGLEADER |
| Model Number: | MKB-F86-DT-BL-RC |
| MOQ: | 1pcs |
| Price: | US$140-200 |
| Packaging Details: | 10pcs/ctn |
| Payment Terms: | L/C,T/T,Western Union,Paypal, D/A, D/P, MoneyGram |

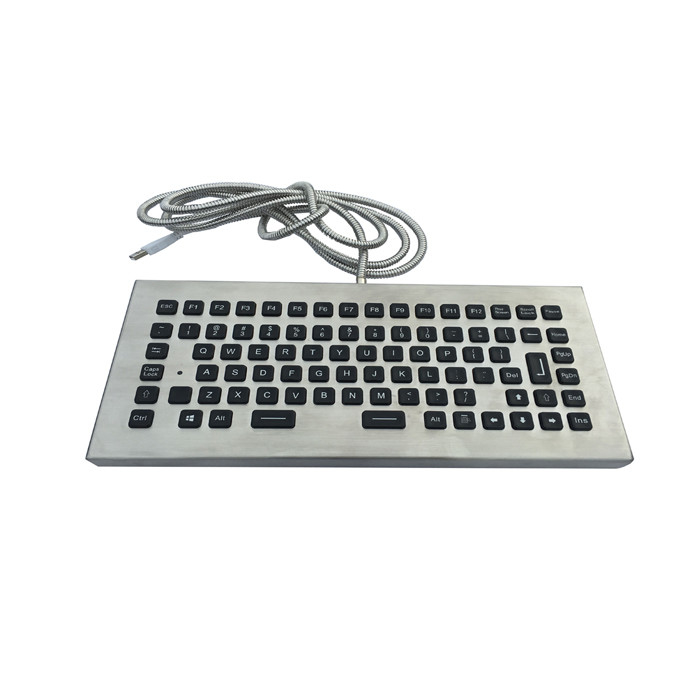

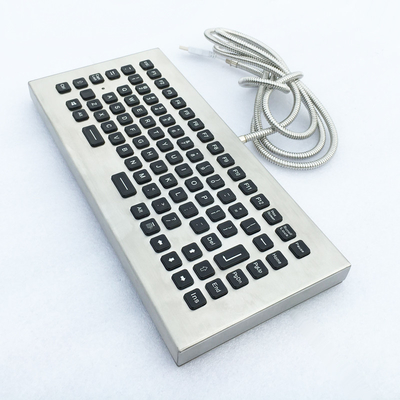

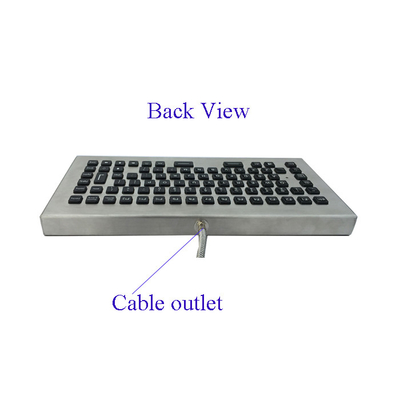

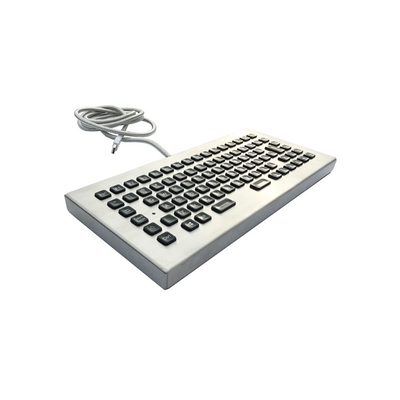

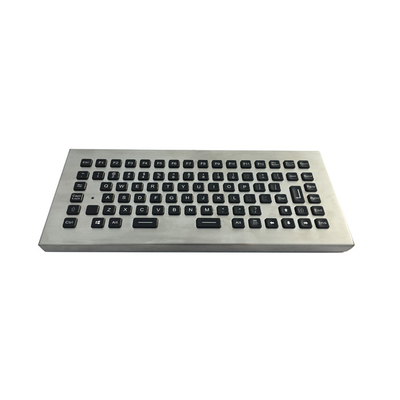

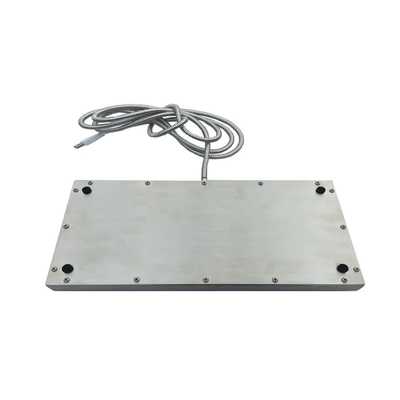

KINGLEADER’s MKB-F86-DT-BL-RC,is a 86-key desktop rugged stainless steel keyboard with reinforced cable.
Due to its unique design and build,it is rubust,rust-resistant,water & dust-proof and vandalproof,thus widely used in harsh and low-lit environments or unattended public facilities like factory workshop,water&gas factory,underground mine,unattended terminals etc
|
Items |
Specifications |
|---|---|
| Key Features |
- Desktop style,no mounting needed,enjoy the convenience of mobility - 86 backlit keys including 12 function keys F1~F12 - Protruding full travel(2.0mm)keys with laser-etched graphics, excellent tactile feedback - Rugged USB or PS/2 cable enhanced with metal wrap enduring wear and tear - Designed to operate in harsh environments - High resistance against rust,corrosion and vandalism - Sealed to meet IP65 up to IP68 rating - PS/2 or USB interface for option - Color of backlight:White,red,green or custom - Customizable layout upon customer’s request |
| Material | - Case: 304 stainless steel - Keys: Industrial grade high temperature resistant polycarbonate,surviving high temp up to 140 degree C |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 120±15g - Key travel: 2.0mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | -FCC,CE,RoHS |
| Dimension | -345.5 x 160 x 25.5 mm(L x W x T) |
| Weight |
2.00 kgs
|
|
