IP65 Rated Stainless Steel Keypad 3x4 Keypad for Access Control System

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKP110-12BL
Minimum Order Quantity 1 PCS
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20 days
Payment Terms Western Union, T/T,Paypal
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Front Panel&keys: Stailess Steel; Back Panel:aluminum Number Of Keys 12
Mounting Method Panel Mounting From The Rear Side Color Of Backlight Green,blue Or Red For Choice
Protection Level IP 65 Dimension 92.00 X 76.50 Mm(L X W) (front Panel)
High Light

backlit keypad

,

custom keyboard

,

IP65 Rated Stainless Steel Keypad

Leave a Message
Product Description

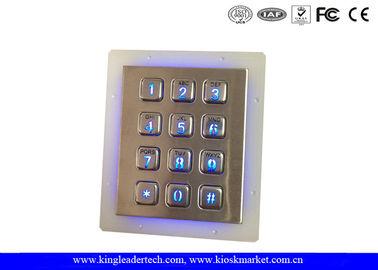

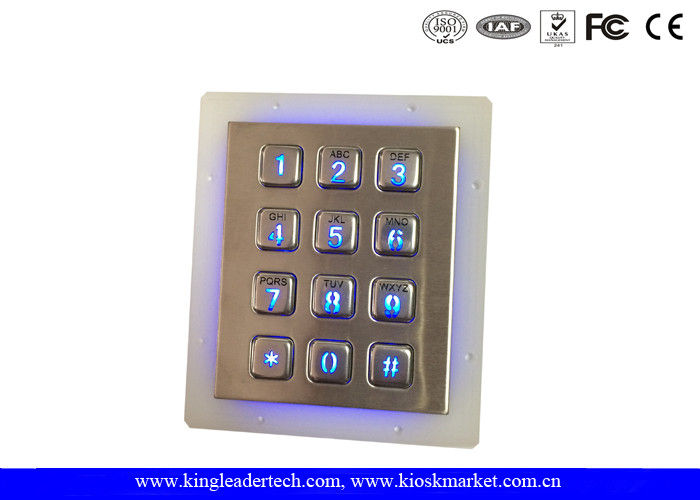

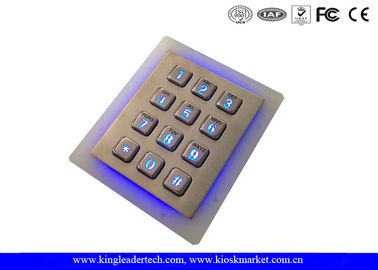

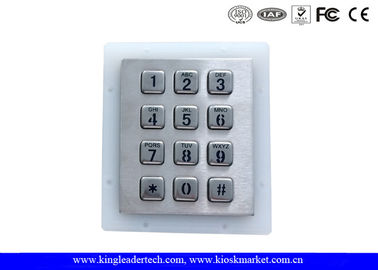

IP65 Rated Stainless Steel Keypad 3x4 Keypad for Access Control System





MKP110-12BL

This keypad is specially designed for Security/access control system or other application in dark or low-light environment, it has 12 individually LED lit keys, featuring vandal-proof, water-proof and dust-proof



Key Features:



  1. 12 full travel and back-lit keys
  2. Keys in 3 X 4 matrix
  3. Stamped characters

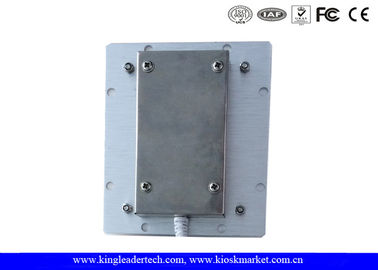

  4. Panel mount from the rear side
  5. Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc
  6. Dust-proof and liquid-proof, IP65 compliance after properly mounted
  7. Layout customizable according to customer’s request
  8. Silicone membrane extends beneath the front panel way to the edge of the back panel, so the membrane also functions as a sealing gasket,no additional gasket will be needed when installed,therefore this design can better prevent water from seeping into the PCB than other conventional design (where the rubber is the same size as the front panel),this enhancement makes it an ideal choice for outdoor application.
  9. Application:access control system,vending machine,public phone or other application in dark or low-lit
  10. environment



Technical Specification

Material

Front panel

304 stainless steel

Keys

304 stainless steel

Back panel

Aluminum

Number of Keys

12

Matrix

3 x 4

Function

Backlight or Non backlight

LED backlight illuminated

Color of backlight

Red,Green or Blue

Electrical Data

Interface

USB or PS/2 or RS232 (With electronic controller board)

11PIN connector (Without electronic controller board)

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Layout

Customizable available

Dimension

96.00 x 76.5.00 mm(L x W ) (front panel)

Application

access control system, vending machine, public phone or other application in dark or low-lit environment
