EMC Emission 107 Keys Waterproof Silicone Keyboard 100mA With Mouse Touchpad

  • EMC Emission 107 Keys Waterproof Silicone Keyboard 100mA With Mouse Touchpad
  • EMC Emission 107 Keys Waterproof Silicone Keyboard 100mA With Mouse Touchpad
  • EMC Emission 107 Keys Waterproof Silicone Keyboard 100mA With Mouse Touchpad
  • EMC Emission 107 Keys Waterproof Silicone Keyboard 100mA With Mouse Touchpad
  • EMC Emission 107 Keys Waterproof Silicone Keyboard 100mA With Mouse Touchpad
Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS,IP68
Model Number SKB-107-TP
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 3000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Silicone Number Of Keys 107 Keys
Protection Level IP68 Layout US Layout
Interface USB Mounting Desktop
High Light

EMC Emission Waterproof Silicone Keyboard

,

107 Keys Waterproof Silicone Keyboard

,

100mA Waterproof Mechanical Keyboard
Leave a Message
Product Description

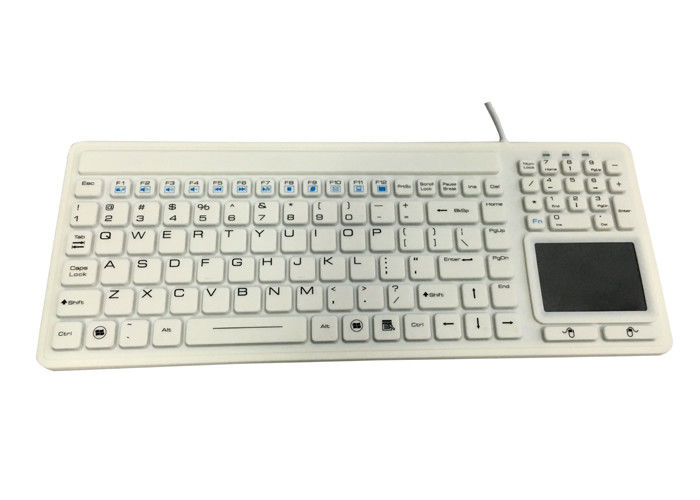

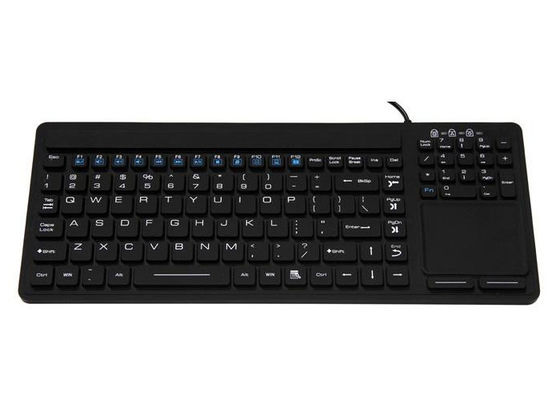

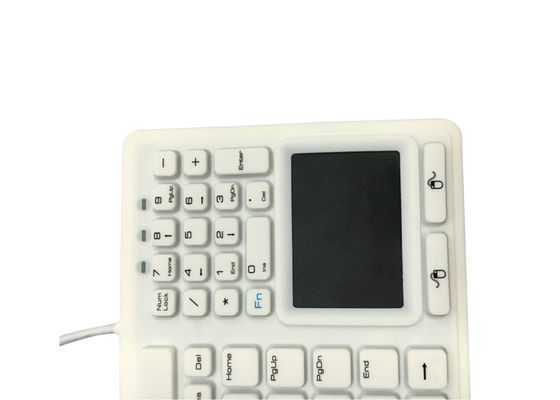

Waterproof Silicone Medical Keyboard With Mouse Touchpad And Full Size Keys



Part number:SKB-107-TP


Typical application:



Used in harsh industrial, military environment OR other medical environments where harmful bacteria exists


Specifications:



-  107 keys including 12 function keys and numeric keys, built-in touchpad

-  Rated Voltage:+5V DC

-  Key Lifespan:>10 millions actuations

-  Seal Protection level: IP68

-  Interface: USB or PS/2 or USB+PS/2

-  Layout: US English or customization

-  Compatibility: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

-  Operating Temperature:-20℃~+65℃

-  Dimensions: 346.00(L) x 136.00(W) x 11.50(T) mm

-  Color: Custom color available



Items Specifications
Key Feature
  • 107 keys including 12 function keys and numeric keys,built-in touchpad
  • Use of antimicrobials to contain reproduction of harmful bacterials
  • Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists
  • Custom color available
Material
  • Silicone
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: <=100mA
- Interface: USB
- EMC Emission:EN55022(B)
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force: 90 ±15g
- Key travel: 1.50mm ±0.5mm
- Lifetime (cycles): Min 10, 000, 000 actuations
- Sealing protection: IP68
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes
Certification FCC,CE,RoHs
Dimension -346.00(L) x 136.00(W) x 11.50(T) mm
Weight 0.65 kgs



EMC Emission 107 Keys Waterproof Silicone Keyboard 100mA With Mouse Touchpad 0

Quality Check and Warranty:

We have a strict QC department in the factory, all raw material must be inspected before mass production.
Semi-product and final product must be checked very carefully on production line. Pick up defective ones and pack the good ones.

And we check our products one by one before we pack and ship to make sure they are all what you ordered, to make sure the quantity be in good condition.
We provide 1 year warranty.Please contact us whenever issues occur and we we’d try our best to assist.

Shipping terms:
1. Usual order: By express, DHL/ UPS/ Fedex etc. methods as you requested
2. Large order: By sea or By air

Payment terms:
Cash,Western Union, Bank Transfer(T/T), paypal,MoneyGra,Credit card

Main Markets:
North America; South America; Eastern Europe; Mid East; Eastern Asia; Western Europe; Central America; Northern Europe; Southern Europe
