Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk

China Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk supplier
Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk supplier Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk supplier Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk supplier Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk supplier Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk supplier

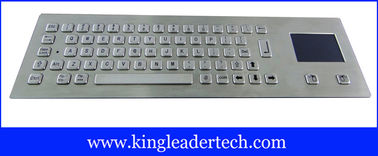

Large Image :  Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk

Product Details:

Place of Origin: China
Brand Name: KINGLEADER
Certification: CE,FCC
Model Number: MKB-64B-TP

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Delivery Time: 20days
Payment Terms: T/T,Paypal
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Interface: PS/2 Or USB
Mounting Method: Mounting From The Front Side Mouse: Integrated Touchpad
IP Level: IP65 Layout: US English,French,Spanish Or Customization

Industrial Keyboard With Touchpad And 64 Keys IP65 Rated



PN:MKB-64B-TP

Key Features:

1) 64 keys, with integrated touchpad;
2) Panel mount
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into the computers directly
8) Customizable



Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Trackball: Stainless steel(Dia: 38mm)

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Touchpad

Power supply voltage: 5 VDC ± 10%

Current rating (active mode): 17 mA

Interface: PS2 or USB

X/Y position sensing resolution: 40 counts/mm

X/Y position reporting: Relative

Tracking speed: Maximum 1, 016 m/sec

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

Weight: 1.80kg

Dimension: Front panel: 400.0x124.0x22.2mm

Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk
