Industrial Computer Mouse
>
Abrasion Resistant Industrial Trackball Mouse 304 Stainless EMC

Abrasion Resistant Industrial Trackball Mouse 304 Stainless EMC

Brand Name: KINGLEADER
Model Number: MTB-25
MOQ: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Payment Terms: T/T,Paypal
Detail Information
Place of Origin:
China
Certification:
CE,FCC
Material:
Stainless Steel
Mounting Method:
Panel Mounting From The Rear Side
Diameter:
25mm
Interface:
USB Or PS/2
Protection Level:
IP65
Key Material:
Stainless Steel
Supply Ability:
3000pcs/month
Highlight:

Abrasion Resistant Industrial Trackball Mouse

,

304 stainless Industrial Trackball Mouse

,

EMC Stainless Steel Trackball Mouse

Product Description

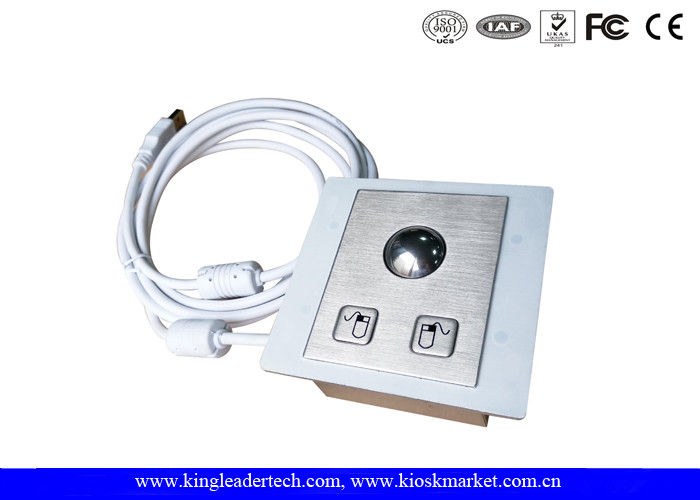

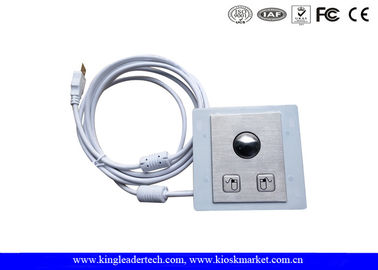

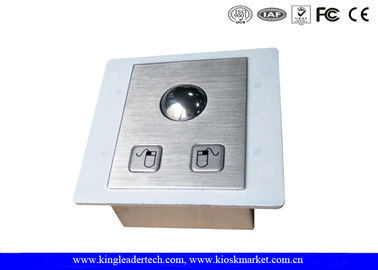

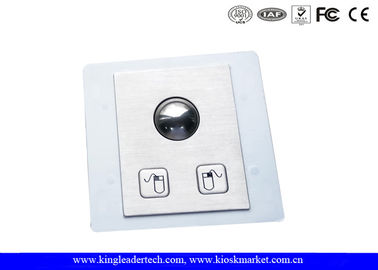

Panel Mounted Stainless Steel Trackball with Diameter 25mm,Left&Right Click Buttons


PN:MTB-25

Key Features

● Optical trackball

● Made of abrasion-resistant stainless steel

● Designed to operate in harsh environments, ideal for web payphones, kiosks and other demanding applications

● Dust-proof and liquid-proof, IP65 compliance

● Vandal-proof

● Compatible with WINDOWS98/ME/2000/XP

● PS/2 or USB interface

● Panel mount





Technical Specifications



Material



• Front Panel: 304 stainless steel
• Key: 304 stainless steel
• Trackball: 304 stainless steel
• Back Panel: aluminum alloy





Electrical Data



• Voltage: 5.0VDC ±5%

• Electric current: 10mA

• EMC compliant

• Optical Trackball Resolution: 1000dpi





Environmental Characteristics

• Operating temperature: -20°C to + 60°C

• Storage temperature: - 40°C to + 80°C

• Saline mist: 96 hours, IEC 60512-6• Damp heat test at + 40°C: 21 days, IEC 60512-6

• Dry heat test at + 85°C: 10 days, IEC 60512-6



Mechanical Data



• Lifecycle: >5 million times per key
• Key Travel: 2mm
• Actuation Force for Keys: 80g nominal
• Lettering: etched graphics with permanent ink

• Trackball Diameter: 25 mm



Operation System



PS2: Win NT4, 98SE, 98ME, 2000,XP
• USB: Win 98SE, 98ME, 2000,XP, Mac
OS9 / OSX



Reliability

• MTBF >20000h

• MTTR <30min



Dimension



• Front Panel: 74 x 60 mm (L x W)









Abrasion Resistant Industrial Trackball Mouse 304 Stainless EMC 0
