| Brand Name: | KINGLEADER |
| Model Number: | MTB-38 |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal |

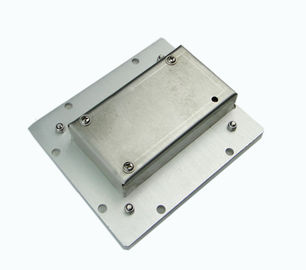

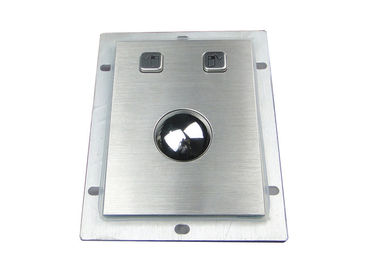

Rugged Panel-mount 38mm Optical Metal Trackball Industrial Pointing Device
MTB-38
Key Features
● Optical trackball(dia:38mm)
● Made of abrasion-resistant stainless steel
● Dust-proof and liquid-proof, IP65 compliance(Static)
● Vandal-proof
● Specially designed to operate in harsh environments, making it ideal for kiosk or other demanding applications in industrial environment
● Compatible with WINDOWS98/ME/2000/XP/Mac/Win7/8/10
● PS/2 or USB interface
● Panel mounting
Technical Specifications
Material
• Front Panel: 304 stainless steel
• Key: 304 stainless steel
• Trackball: 304 stainless steel
• Back Panel: aluminum alloy
Electrical Data
• Voltage: 5.0VDC ±5%
• Electric current: 10mA
• EMC compliant
• Optical Trackball resolution: 1000dpi
Environmental Characteristics
• Operating temperature: -20°C to + 60°C
• Storage temperature: - 40°C to + 80°C
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40°C: 21 days, IEC 60512-6
• Dry heat test at + 85°C: 10 days, IEC 60512-6
Mechanical Data
• Lifecycle: >5 million times per key
• Key Travel: 2mm
• Actuation Force for Keys: 80g nominal
• Lettering: raised graphics with permanent printing ink
• Trackball diameter: 38 mm
Operation system
• PS2: Win NT4, 98SE, 98ME, 2000, XP
• USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Reliability
• MTBF >20000h
• MTTR <30min
Dimension
• Face plate:110 x 83 mm(LxW)
|
|
