| Brand Name: | KINGLEADER |
| Model Number: | TSK8004 |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/ctn |
| Payment Terms: | T/T,Paypal |

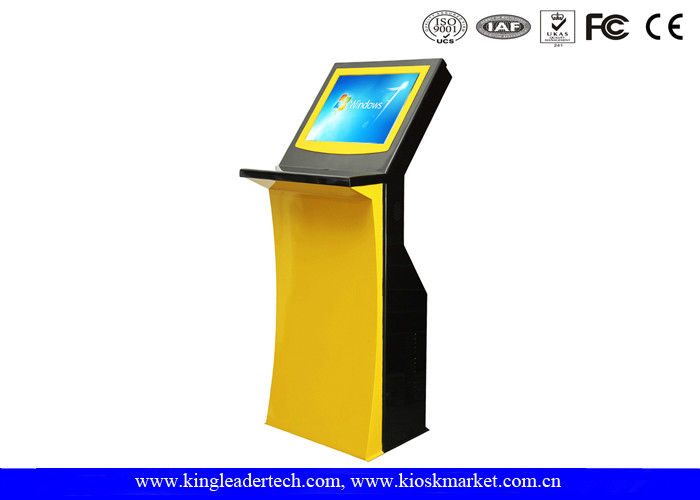

Stylish Airport Information Checking Self Service Touch Screen Kiosk In 19Inch Screen Size
PN:TSK8004 (Freestanding Model)
Key Features:
1) High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
2) 15″,17″,19″TFT LCD displays for option
3) Durable steel enclosure, sleek, curved, extra slim, stylish and ADA compliant design
4) Built-in hi-fi amplified speakers
5) Customizable
6) Applications: office building, court house, hospital/medical center, airport, university,
government building, shop, theater and other public places where information and/or
transaction are provided in self-service and interactive manner.
|
Technical Specification |
|
|
TFT LCD Display |
|
|
Resolution |
1024x768(15″);1280x1024(17″and 19″) |
|
Brightness |
250~300 nits |
|
Contrast ratio |
450:1 |
|
Response time |
8 ms |
|
Touch Screen |
|
|
Type |
Vandal-proof SAW touch screen |
|
Resolution |
4096*4096 |
|
Deviation of error |
<2mm |
|
Light Transmittance |
≥ 92% |
|
Surface Hardness |
7 Mohs scale |
|
Lifetime |
50,000,000 times at one single location |
|
Response time |
less than 16 ms |
|
Touch activation force |
10~100g |
|
Enclosure |
|
|
Durable steel enclosure (different colors for option) |
|
|
Built-in power control panel, and hi-fi speakers. |
|
|
Two cooling fans for computer board and main body separately |
|
|
RJ45/RJ11 interface |
|
|
Large access doors with tubular locks/keys |
|
|
Computer |
|
|
Mother board |
GIGABYTE H61 |
|
CPU |
Intel Pentium dual core G550 2.60GHz (upgradeable as per request) |
|
RAM |
2GB (upgradeable as per request) |
|
Hard Disc |
500GB (upgradeable on request) |
|
Interface and Port |
8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45;LAN port |
|
Others |
Integrated sound/network/graphics card |
|
Compatible Operation System |
|
|
Windows2000/XP/Vista/Win7, RedHatLinux/FedoraCore/Win8 |
|
|
Power supply |
|
|
AC110V-240V,50H-60HZ |
|
|
Working Environment |
|
|
Temperature -20℃-+65℃, Relative humidity 10%-90% |
|
|
Dimension |
|
|
138x 50x 35CMs (H x W x D) |
|
|
Packaging |
|
|
Exportable,transport-worthy plywood crate |
|
|
Warranty |
|
|
One year after the date of delivery |
|
|
Optional Periperals |
|
|
Metal keyboard,keypad,webcam,barcode scanner,card reader,thermal printer,coin acceptor,bill acceptor,finger printer reader etc. |
|
|
