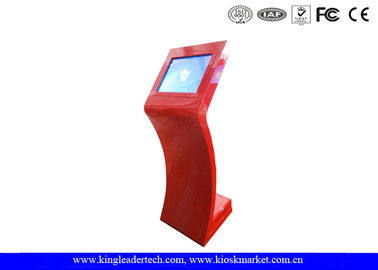

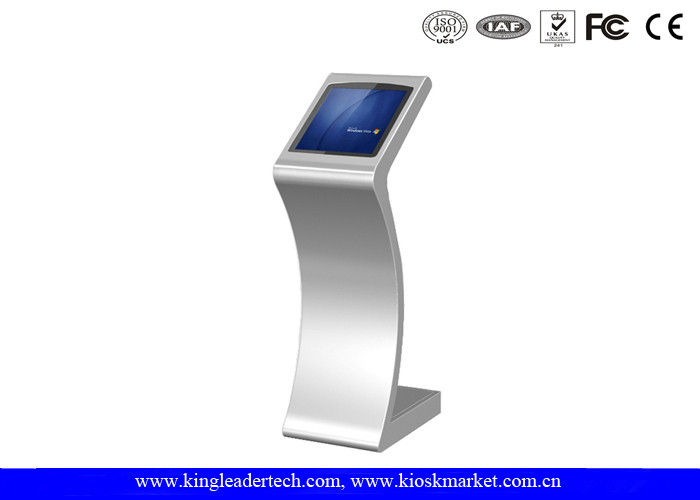

High-Sensitivity 19" Touch Screen Kiosk Stand In Super-Slim Design

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,LVD
Model Number TSK8029
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/ctn
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 500month
Product Details
Material Durable Steel/cold Rolled Steel Finish Painting
Color Customization Available Touch Screen Vandal Proof SAW
Model Freestanding Floor Stand Display Size 15" 17" Or 19" For Option
High Light

interactive touch screen kiosk

,

digital kiosk touch screen

,

High Sensitivity 19" Touch Screen Kiosk

Leave a Message
Product Description

High-Sensitivity Touch Screen Kiosk With Super-Slim And Curved


PN:TSK8029

1)Durable steel enclosure, super-slim, curved, stylish and ADA compliant design
2)Built-in hi-fi amplified speakers
3)Customizable
4)High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
5)15", 17", 19"TFT LCD displays for option
6)Applications: office building, court house, hospital/medical center, airport, university,
government building, shop, theater and other public places where information and/or
transaction are provided in self-service and interactive manner.




                                                        Technical Specifications

TFT LCD Display

-Resolution: 1024x768(15")

1280x1024(17"and 19")

- Brightness: 250~300 nits

- Contrast ratio: 450:1

- Response time :8 ms

Touch Screen

-Vandal-proof SAW touch screen

- Material: Heat tempered glass with thickness 6mm

- Resolution: 4096*4096

- Deviation of error: <2mm

- Light Transmittance: 92%

- Surface Hardness: 7 Mohs scale

- Lifetime:50, 000, 000 times at one single location

- Response time: less than 16 ms

- Touch activation force: 10~100g

Enclosure

-Durable steel enclosure (different colors for option)

- Built-in power control panel, and hi-fi speakers.

- Two cooling fans for computer board and main body separately

- RJ45/RJ11 interface

- Large access doors with tubular locks/keys

Mother Board

-CPU: Intel Pentium dual core E5700, 3.6GB

(upgradeable on request)

- RAM: 2GB (upgradeable on request)

- Hard Disc: 500GB (upgradeable on request)

Compatible Operation System

LINUX/Win3.X/98/2000/NT4.0/XP

Working Voltage

AC 220V, 50 Hz or 110V, 60 Hz for option

Ambient Environment

-WorkingTemperature

-20°C~65°C;RelativeHumidity: 30%~90%

- Storage Temperature:

-40°C~80°C;Relative Humidity: 5%~95%

Dimensions

-145(height) x 48(width) x 28(depth) CMs

- Packing dimension: 150 x 60 x 46cm

Optional Peripherals

Card reader, barcode scanner etc
