| Brand Name: | KINGLEADER |
| Model Number: | TSK4001DT |
| MOQ: | 1pcs |
| Price: | US$600-1200 |
| Packaging Details: | 1pcs/ctn |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

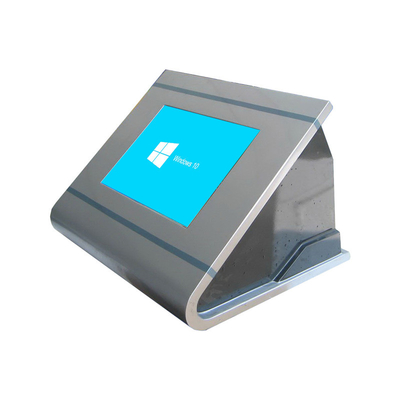

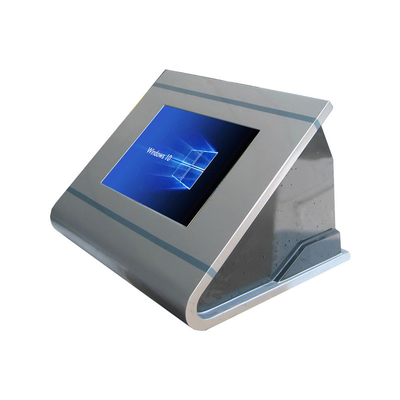

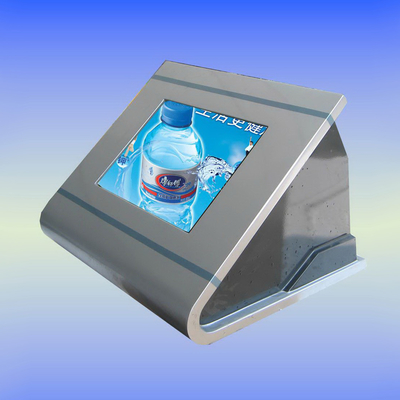

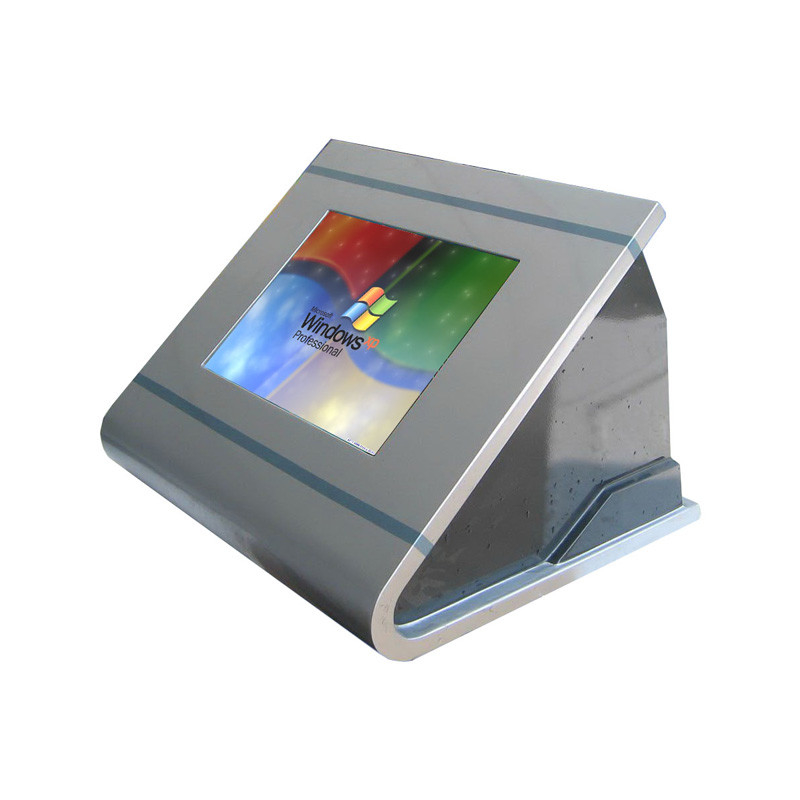

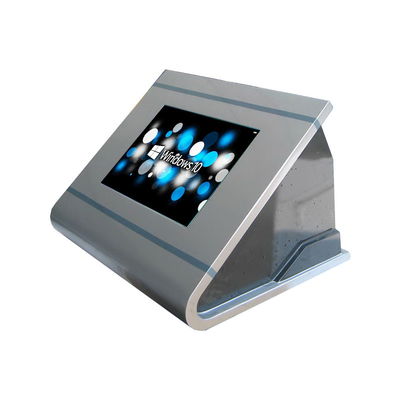

This is an space-saving,simple yet stylish desktop kiosk with durable steel enclosure,vandal-proof Infra-Red touchscreen and TFT LCD display,with the convenience of directly placed on the top of desk or counter,no mounting is needed.
Typical application is to be deployed on reception counter in hotel,small restaurant,convenience store,airport,coach station,port terminal etc where space is not sufficient.
|
Items
|
Specifications |
|---|---|
| Key Features |
- Directly placed on the top of desk or counter,no mounting is needed - High-sensitivity,high light-transmittance,anti-glare,vandal-proof IR touchscreen - 15″,17″,19″TFT LCD displays for option - Portrait and landscape screen for option - Durable steel enclosure,simple yet stylish and space-saving design - Built-in hi-fi amplified speakers - Customization available upon request |
|
TFT LCD Display
|
- Resolution: 1024x768(15″) 1280x1024(17″and 19″) - Brightness: 250~300 nits - Contrast ratio: 450:1 - Response time :8 ms |
|
Touch Screen
|
- Vandal-proof IR touch screen - Material: Heat tempered glass - Resolution: 4096*4096 - Deviation of error: <2mm - Light Transmittance: ≥ 92% - Surface Hardness: 7 Mohs scale - Lifetime:50,000,000 times at one single location - Response time: less than 16 ms |
|
Enclosure
|
- Durable steel enclosure (different colors for option) - Built-in power control panel, and hi-fi speakers. - Two cooling fans for computer board and main body separately - RJ45/RJ11 interface - Large access doors with tubular locks/keys |
|
Computer
|
- Mother board:Industrial motherboard - CPU: Intel Bay Trail J1900,2.4GHz(upgradeable on request) - RAM: 8GB (upgradeable on request) - Hard Disc: 500GB (upgradeable on request) |
| Operation System |
- LINUX/Win3.X/98/2000/NT4.0/XP/Win7/8.1/10 |
| Working Voltage | - AC 220V,50 Hz or 110V,60 Hz for option |
| Ambient Environment |
- WorkingTemperature: 20℃~65℃;RelativeHumidity: 30%~90% - Storage Temperature:40℃~80℃;Relative Humidity: 5%~95% |
| Dimensions and Weight |
- Dimensions: 500*440*388 mm (W x D x H) for 15” or 17” screen - Net wt:20kgs,Gross wt:30kgs |
| Optional Peripherals |
- camera,thermal receipt printer,cash acceptor,card reader etc
|
|
|
