| Brand Name: | KINGLEADER or Custom |
| Model Number: | SM-400-LS(PB) |
| MOQ: | 1 pcs |
| Price: | USD15-25 |
| Packaging Details: | 1pcs/box , |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram, D/A, D/P |

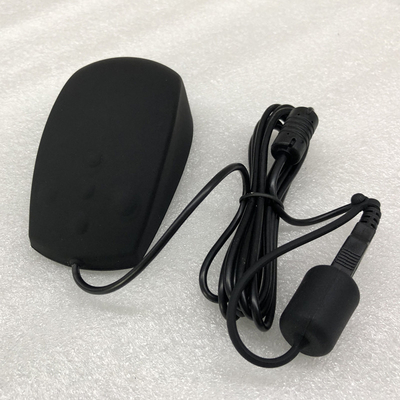

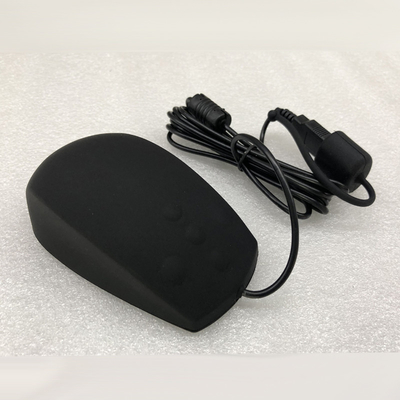

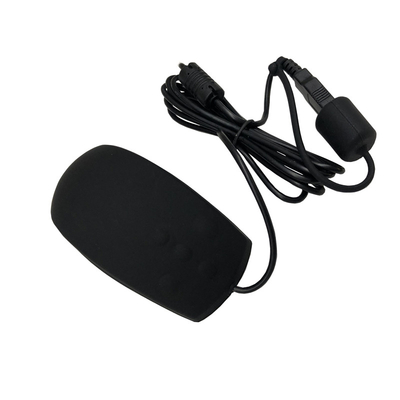

KINGLEADER's SM-400-LS(PB) is a Completely-sealed IP68 Waterproof Washable Anti-virus Disinfectable Medical Optical Mouse with Anti-interference Ferrite Ring and additional pretector for the USB connector.
It has five buttons:left and right click buttons and three scroll buttons.
Due to its unique design and build,it is widely used in medical or industrial environments.
|
Items
|
Specifications |
|---|---|
| Key Features |
- Laser mouse - Completely sealed to be IP68 compliant - PS/2 or USB interface - Ferrite ring added to the cable to work against interference - USB pretector added to prevent liquid from entering into the USB connector while disinfecting or cleaning the mouse - Left & right click buttons and 3 scroll buttons - Use of antimicrobials to prevent reproduction of harmful bacterials - Used in industrial,military environment OR other medical environments where water-tightness is a must - Color available:Black,white or custom
|
| Material |
-Top overlay/cover:Industrial and medical-grade silicone -Bottom plate:plastic |
| Electrical Data |
- Voltage: 5.0VDC ±5% - Electric current: 10mA - EMC compliant - Laser Trackball resolution: 1000dpi |
| Environmental Characteristics | - Operating temperature: -20º C to + 65º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data |
- Lifecycle: >10 million times per key - Key Travel: 1.50mm ±0.5mm - Actuation Force for Keys: 90 ±15g - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
- MTBF:>20,000 hours - MTTR:<30 minutes |
| Certification |
- CE,FCC,RoHS,IP68 - EMC: EN 60601-1-2:2015, EN 61000-3-2:2019, EN 61000-3-3:2013
|
| Dimension | - 115(L) x 68(W) x 42(H) mm |
| Weight | - 0.20 kgs |
|
