Industrial Numeric Keypad
>
Stainless Steel Industrial Numeric Keypad Vandal High Resistance For Access Control System

Stainless Steel Industrial Numeric Keypad Vandal High Resistance For Access Control System

Brand Name: KINGLEADER
Model Number: MKP92-12
MOQ: 1pcs
Price: US$1-99
Packaging Details: 1pcs/box, 10pcs/ctns
Payment Terms: T/T,Paypal, Western Union,Credit card
Detail Information
Place of Origin:
China
Certification:
CE,FCC
Material Of Front Panel:
Stainless Steel
Material Of Back Panel:
Aluminum Alloy
Number Of Keys:
12 Full Travel Keys
Matrix:
3x4
Interface:
USB Or PS/2 Or RS232 Or 7Pin Connector
Layout:
Customization Available
Supply Ability:
3000pcs/month
Highlight:

numeric key pad

,

computer numeric keypad

,

Industrial Numeric Keypad Vandal High Resistance

Product Description



Stainless Steel Industrial Numeric Keypad Vandal High Resistance For Access Control System





Part Number:MKP92-12



Key Features:



● 12 full travel keys,all keys are in the same size

● Keys in 3 x 4 matrix

● Chemically-etched characters

● Panel mount from the rear side

● Vandal resistant design
● Robust metal construction

● Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc

● Dust-proof and liquid-proof, IP65 compliance after properly mounted

● Layout customizable according to customer’s request

Application:access control system or other application in harsh environment



Technical Specification

Material

Front panel & Keys

304 stainless steel

Number of Keys

12

Matrix

3 x 4 (Columns x Rows)

Illumination

Non-Illumination

Description KEYPAD 12 KEY REAR PANEL Mount

Electrical Data

Interface

USB or PS/2 or RS232(With electronic controller board)

7PIN connector (Without electronic controller board)

Lead Free Status / RoHS Status Lead free / RoHS Compliant

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Seal Rating

IP65/NEMA4X from the front

Layout/Graphics

Customizable available

Dimension

92.00 x 76.50 mm (W x D) (front panel)

Application

access control system or other application in harsh environment

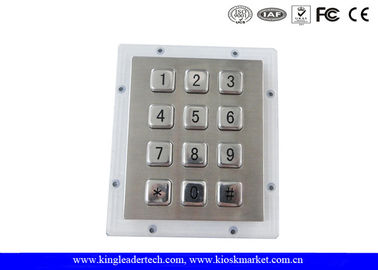

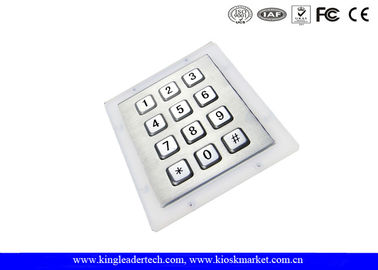

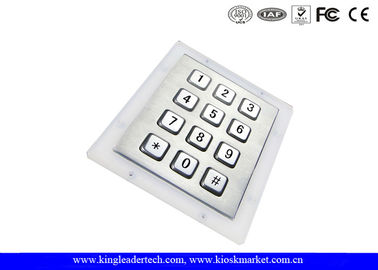

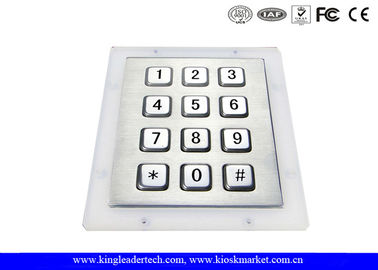

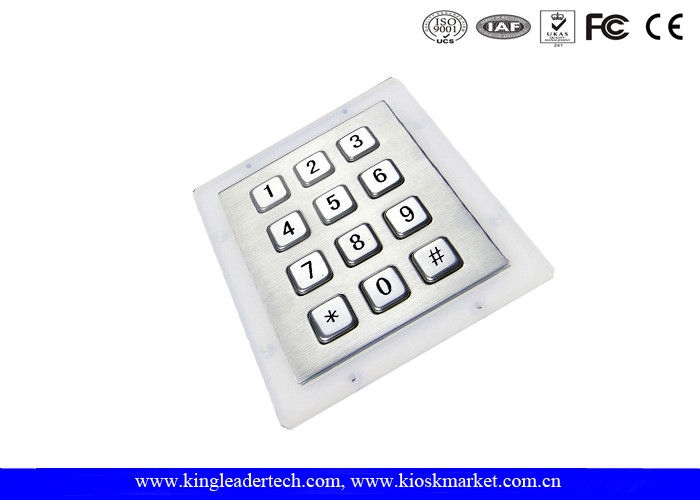

More Photos:



Stainless Steel Industrial Numeric Keypad Vandal High Resistance For Access Control System 0

Stainless Steel Industrial Numeric Keypad Vandal High Resistance For Access Control System 1

FAQ

1. Q: How could I get samples?
   A: If you need to order sample for checking-up,we would like to ask you to pay   for the samples and courier freight.We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
   A: Courier freight depends on the quantity,weight and carton size and your area.
3. Q: How can i get your price list?
   A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message“.we will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
   A: Yes,We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
   A: We accept terms of T/T /Westunion/Paypal/LC
6. Q: what's the warranty of your products?
   A: one year

Why us?

1, ISO9001:2008 certification
2, Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3, Reasonable price and fast response
4, Over 10 years of experience in rugged input device and touchscreen kiosk
5, OEM and ODM capability
6, Flexibility in customization and size of order
7, Trusted suppliers of many world-class famous brands in the industry
Our Services



* We’re a professional manufacturer for over 10 years.
* Experienced Technical Staffs and Patient, professional sales team.
* High quality assurance with competitive price
* OEM and ODM available.
* Any of your feedback will be responded within 12 hours
* Best after sales service to ensure satisfaction from customers.


How to order?



If you are interested in our products and want to place an order, firstly contact us by email,or contact with us online and we will send you our price list.


After that you can make a list of the products or just show the pictures that you are interested in and send it to usso that we can prepare the Proforma Invoice with freight cost and bank account for your checking.


After you received the Proforma Invoice you can arrange payment using Western Union or Bank Transfer or Paypal.
Once we receive your full payment we prepare your goods and ship them out in 3-5 working days.



And we need to know the following information of your order:
a) Shipping information - Contact Name, Company name, Detail address, Phone number, Fax number,
b) Product information - model numbers, quantity, pictures
c) Delivery time required
d) Freight payment (by collect or prepare),or if you have own forwarder, tell us their contact details


Quality Check and Warranty:

We have a strict QC department in the factory, all raw material must be inspected before mass production.
Semi-product and final product must be checked very carefully on production line. Pick up defective ones and pack the good ones.



And we check our products one by one before we pack and ship to make sure they are all what you ordered, to make sure the quantity be in good condition.
We provide 1 year warranty.Please contact us whenever issues occur and we we’d try our best to assist.


Shipping terms:
1. Usual order: By express, DHL/ UPS/ Fedex etc. methods as you requested
2. Large order: By sea or By air


Payment terms:
Cash,Western Union, Bank Transfer(T/T), paypal,MoneyGra,Credit card


Main Markets:
