Backlit Metal Keypad
>

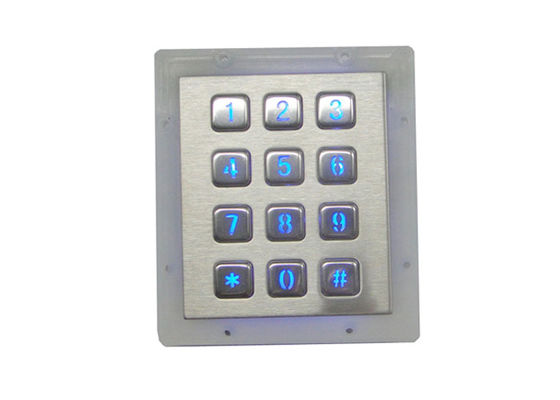

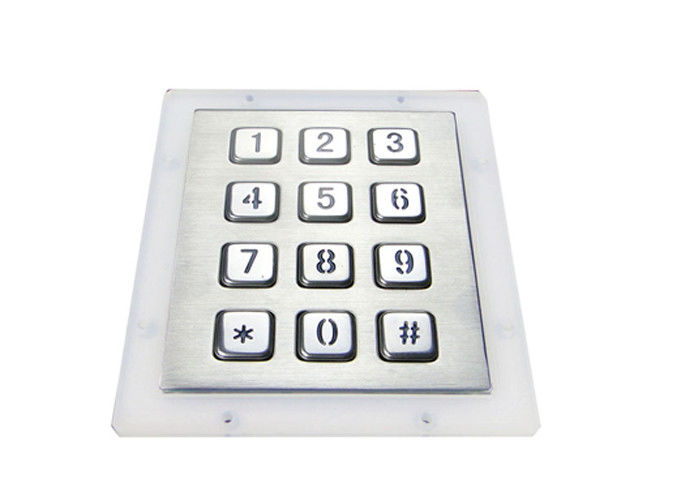

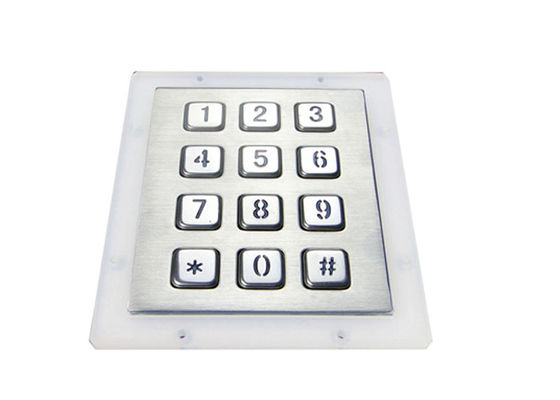

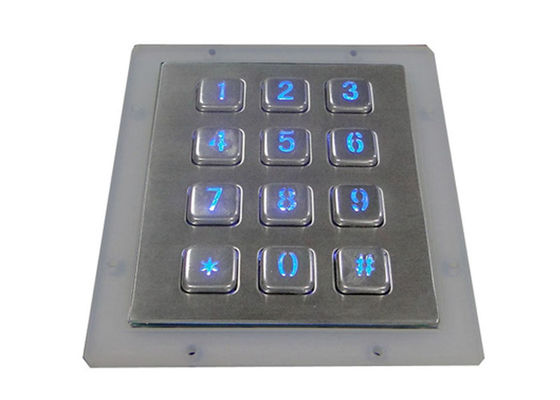

12 Keys Backlit Metal Keypad IP65 For Vending Machines

12 Keys Backlit Metal Keypad IP65 For Vending Machines

Brand Name: KINGLEADER
Model Number: MKP110-12BL
MOQ: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Payment Terms: T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE,FCC,ROHS
Material Of Front Panel:
Stainless Steel
Material Of Back Panel:
Aluminum Alloy
Material Of Keycap:
Stainless Steel
Number Of Keys:
12 Led Illuminated Backlight Keys
Interface:
USB Or PS/2 Or RS232 Or Matrix
Layout:
Customization Available
Supply Ability:
2000pcs/month
Highlight:

12 Keys Backlit Metal Keypad

,

Vending Machines Backlit Metal Keypad

,

IP65 Waterproof Backlit Keypad

Product Description

IP65 Waterproof 12 Keys Backlit Metal Keypad Used For Vending Machines



PN:MKP110-12BL



Key Features:



● 12 full travel and back-lit keys,all keys are in the

same size

Keys in 3 X 4 matrix

Stamped characters

Panel mount from the rear side

Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc

Dust-proof and liquid-proof, IP65 compliance after properly mounted

Layout customizable according to customers request

Silicone membrane extends beneath the front panel way to the edge of the back panel, so the membrane also functions as a sealing gasket, no additional gasket will be needed when installed, therefore this design can better prevent water from seeping into the PCB than other conventional design (where the rubber is the same size as the front panel),this enhancement makes it an ideal choice for outdoor application.

Layout customizable according to customers request

Application:access control system or other application in dark or low-lit environment



Items Specifications
Key Features

- 12 full travel and back-lit keys,all keys are in the same size

- Keys are in 3X4 matrix

- Panel mount from the rear side

- Exposed parts made of stainless steel,high resistance against destruction,rust etc

- Silicone keypad membrane extends beneath the front panel way to the edge of the back panel, so the membrane also functions as a sealing gasket,no additional gasket will be needed when installed,therefore this design can better prevent water from seeping into the PCB than other conventional design (where the rubber is the same size as the front panel),this enhancement makes it an ideal choice for outdoor application.
- Layout customizable according to customer’s request

- Application: Outdoor parking system,ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines,kiosks,workstation,outdoor weight station etc.

Material - Face plate: 304 stainless steel
- Keys: 304 stainless steel
- Back plate: Aluminum
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB,PS2,RS232 and PIN
- EMC Emission:EN55022(B)
Environmental Characteristics

- Working temperature: -20℃~+60℃

- Storage temperature: -40℃~+80℃

- Relative humility: 20~95%

- Atmospheric pressure: 50-110 K Pa
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force: 150±15g

- Key travel: 2mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4

Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification FCC,CE,RoHs
Dimension -92.00 x 76.50 mm (W x D) (front panel)
Weight

0.25 kgs
