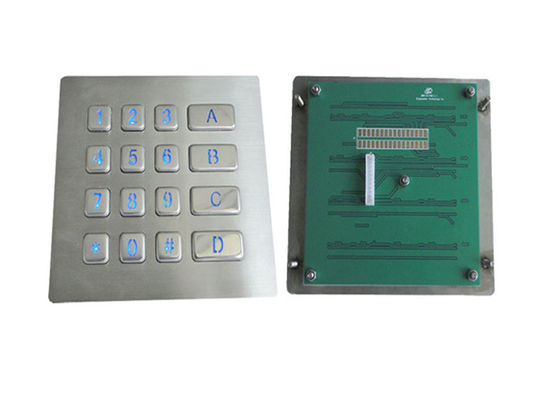

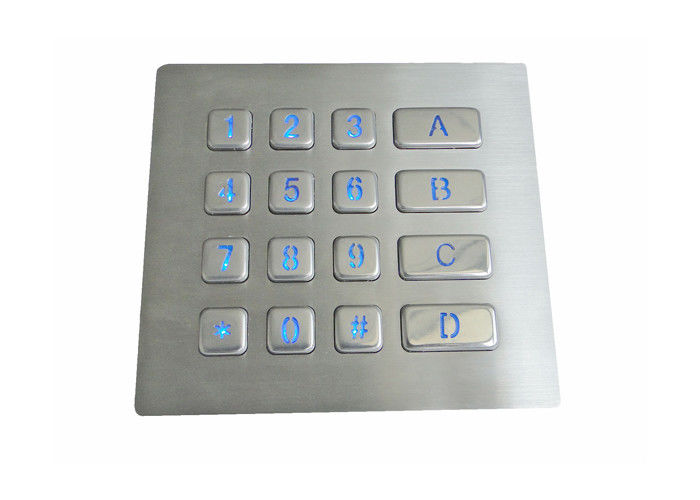

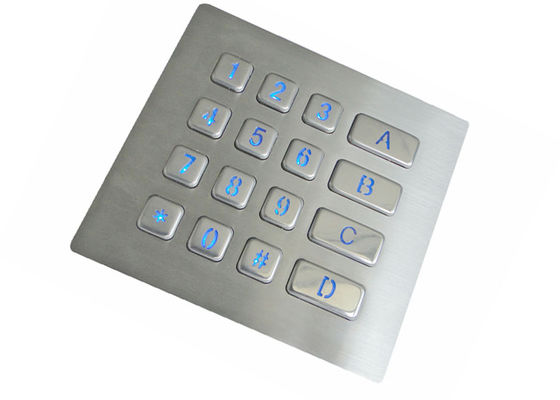

16 Keys Led Backlighting Matrix Metal Keypad IP65

Place of Origin China
Certification CE,FCC,ROHS
Model Number MKP120-16BL
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Number Of Keys 16 Material Of Front Panel Stainless Steel
Material Of Keys Stainless Steel Mounting Method Panel Mounting From The Rear Side
Keys Led Backlighting Protection Level IP65
High Light

Led Backlighting Matrix Metal Keypad


16 Keys Matrix Metal Keypad


IP65 Backlighted Keys Matrix Keypad

Leave a Message
Product Description

Matrix Metal Keypad With 16 Backlighted Keys for Security Access Control System



This keypad is specially designed for Security/access control system or other application in dark or low-light environment, it has 16 individually LED lit keys, featuring vandal-proof, water-proof and dust-proof


Key Features:


1)16 full travel and back-lit keys

 2)Keys in 4 X 4 matrix

 3)Stamped characters

 4)Panel mount from the front side

 5)Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc

 6)Dust-proof and liquid-proof, IP65 compliance after properly mounted

 7)Layout customizable according to customer’s request

 8)Application:access control system,vending machine,public phone or other application in dark or low-lit environment


Technical Specification


Front panel

304 stainless steel


304 stainless steel

Back panel


Number of Keys



4 x 4


Backlight or Non backlight

LED backlight illuminated

Color of backlight

Red,Green or Blue

Electrical Data


USB or PS/2 or RS232 (With electronic controller board)

11PIN connector (Without electronic controller board)



Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel


Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front


Customizable available


120.00 x 110.00 mm(W x D) (front panel)


access control system, vending machine, public phone or other application in dark or low-lit environment


16 Keys Led Backlighting Matrix Metal Keypad IP65 0


1. Q: How could I get samples?
A: I f you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight.We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on the quantity,weight and carton size and your area.
3. Q: How can i get your price list?
A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message“.we will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
A: Yes,We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
A: We accept terms of T/T /Westunion/Paypal/LC
6. Q: what's the warranty of your products?
A: one year
