| Brand Name: | KINGLEADER |
| Model Number: | MKB-F86A-TP |
| MOQ: | 1pcs |
| Price: | US$100-200 |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union |

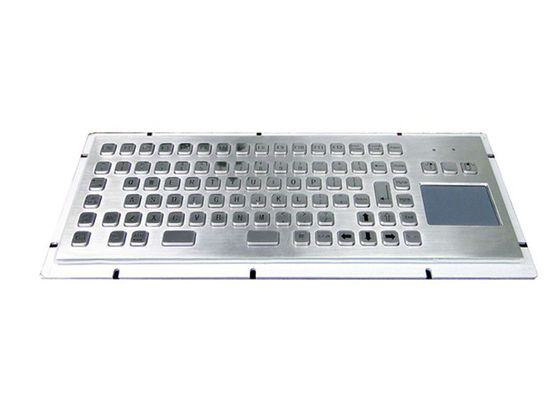

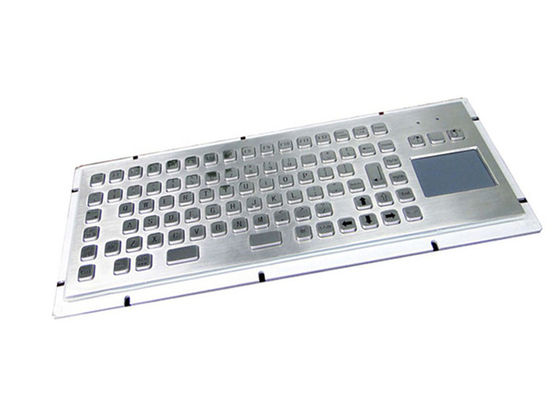

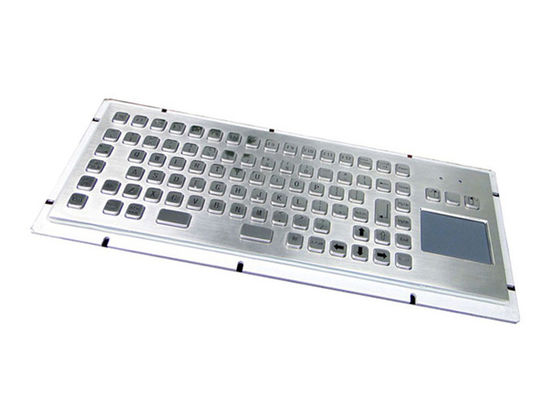

Panel Mounting Industrial Keyboard with Function Keys F11-F12 and Trackpad
MKB-F86A-TP

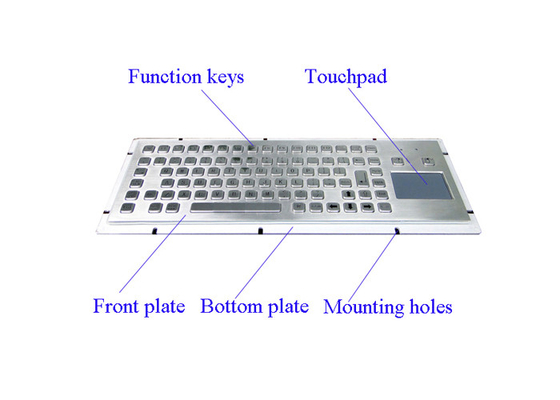

Key Features
1) 86 full travel keys including 12 function keys

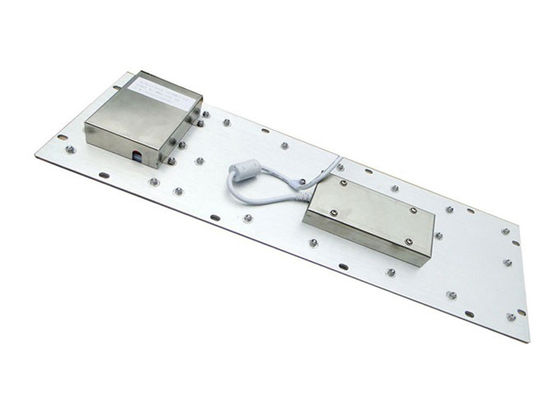

2) Panelmount from the back
3) With integrated touchpad
4) Chemically-etched graphics
5) Designed for rough applications
6) Built from stainless steel, high resistance against vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement
8) PS/2 or USB interface for option
9) Customizable layout upon customer’s request
| Items | Specifications |
| Key Features |
- 86 full travel keys including 12 function keys - Designed for rough applications - Custom layout available |
| Material |
- Face plate: 304 stainless steel - Back plate: Aluminum |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: 20mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force:120±15g - Key travel: 2.0mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | FCC,CE,RoHs |
| Dimension |
319x135mm (Front panel), Overall thickness:46mm |
| Weight | 2.20 kgs |
FAQ
1. Q: How could I get samples?
A: If you need to order sample for checking-up, we would like to ask you to pay for the samples and courier freight. We send the samples to you only after receipt of your payment. If you have an courier account, you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on the quantity, weight and carton size and your area.
3. Q: How can i get your price list?
A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message”. We will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
A: Yes, We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
A: We accept terms of T/T /West Union/ PayPal/ LC/Credit Card
6. Q: What's the warranty of your products?
A: one year
|
