| Brand Name: | KINGLEADER |
| Model Number: | SKB-87 |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

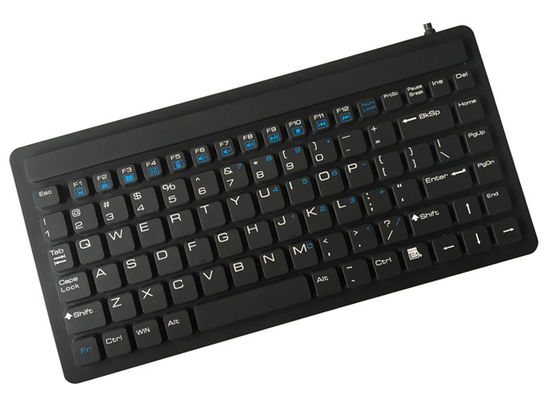

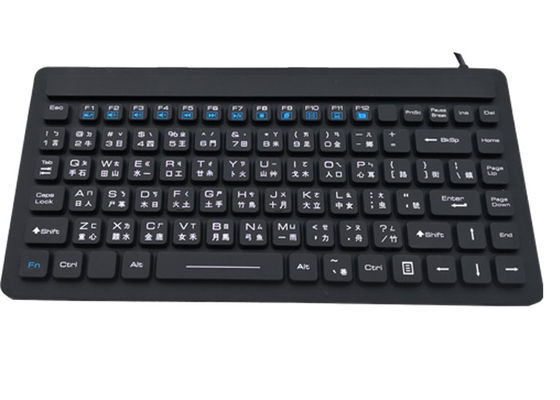

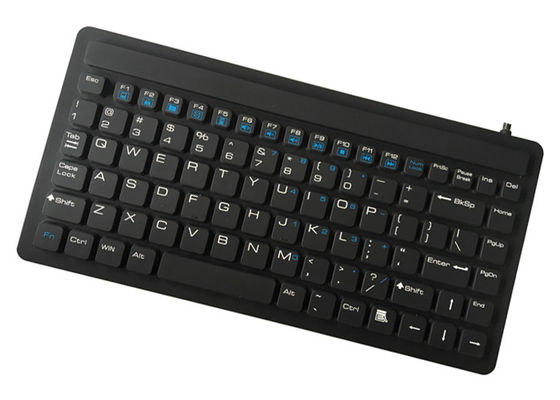

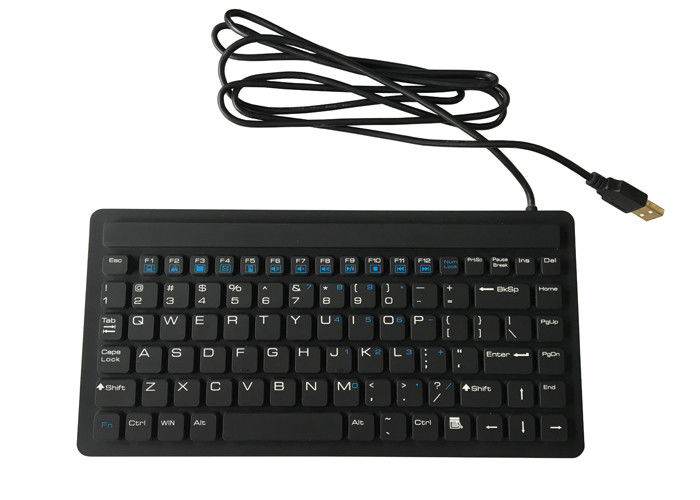

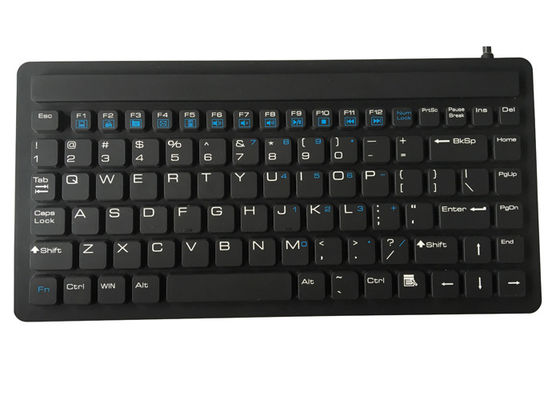

IP68 Waterproof Medical Silicone Keyboard With Function Keys and CE Certificate
Rugged super slim,small-footprint,washable,IP68 rated silicone keyboard, featuring 87
keys including F1~F12 function keys
Part Number: SKB-87
Typical application:
Used in harsh industrial, military environment OR other medical environments where harmful bacteria exists
Specifications:
- Number of Keys: 87 keys including 12 function keys
- Key Lifespan:>10 millions actuations
- Seal Protection level: IP68
- Interface: USB
- Layout: US English or customization
- Compatibility: Microsoft® Windows 7/Vista®/XP/2000/ME/98/ Linux
- Operating Temperature:-20℃~+65℃
- Dimensions: 272(L) x 135(W) x 11.5(T) mm
- Color: Black, Custom color available
| Items | Specifications |
| Key Feature |
|
| Material |
|
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 90 ±15g - Key travel: 1.50mm ±0.5mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | FCC,CE,RoHs |
| Dimension | -272(L) x 135(W) x 11.5(T) mm |
| Weight | 0.55kgs |
Shipping terms:
1. Usual order: By express, DHL/ UPS/ FedEx etc. methods as you requested
2. Large order: By sea or By air
Payment terms:
Cash, Western Union, Bank Transfer(T/T), PayPal, Money Gra, Credit card
Main Markets:
North America; South America; Eastern Europe; Mid East; Eastern Asia; Western Europe; Central America; Northern Europe; Southern Europe
|
|
