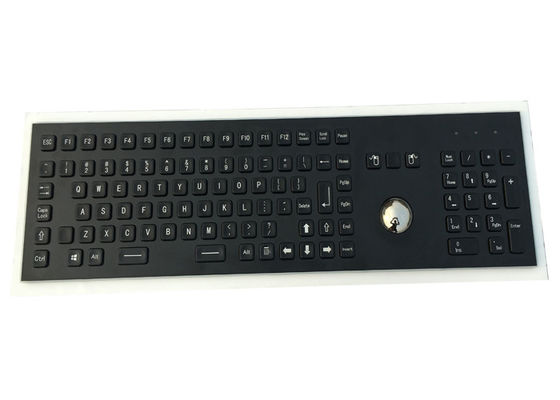

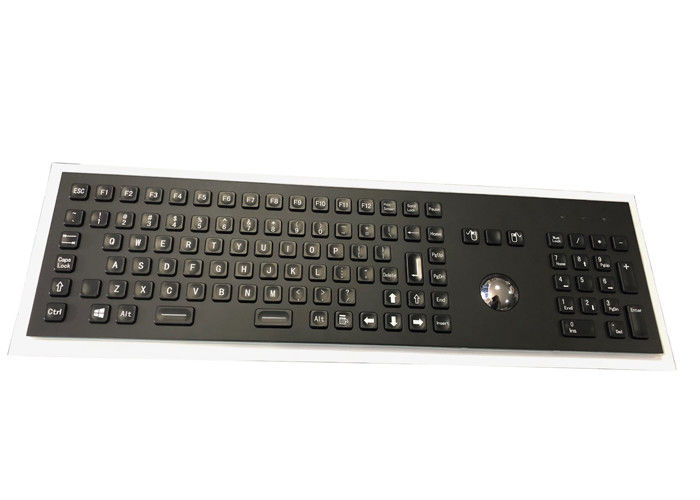

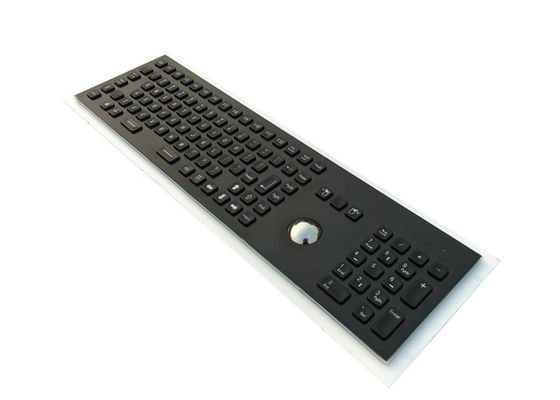

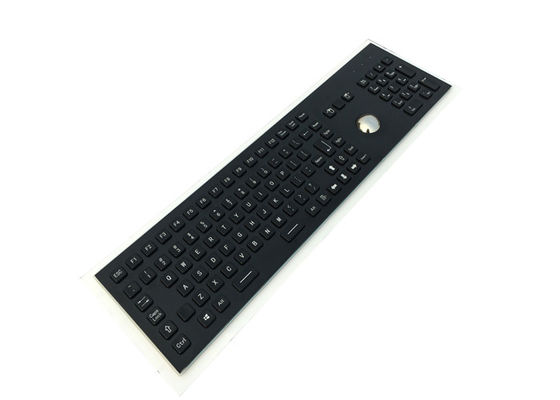

103 Keys Electroplated Black Industrial Metal Keyboard 20mA 38mm Trackball

103 Keys Electroplated Black Industrial Metal Keyboard 20mA 38mm Trackball
103 Keys Electroplated Black Industrial Metal Keyboard 20mA 38mm Trackball 103 Keys Electroplated Black Industrial Metal Keyboard 20mA 38mm Trackball 103 Keys Electroplated Black Industrial Metal Keyboard 20mA 38mm Trackball 103 Keys Electroplated Black Industrial Metal Keyboard 20mA 38mm Trackball

Large Image :  103 Keys Electroplated Black Industrial Metal Keyboard 20mA 38mm Trackball Get Best Price

Product Details:
Place of Origin: China
Brand Name: KINGLEADER
Certification: CE,FCC,ROHS
Model Number: MKB-FN103A-TB-BL-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Delivery Time: 20days
Payment Terms: T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000pcs/month
Detailed Product Description
Material Of Front Panel: Stainless Steel Number Of Keys: 103
Key Travel: 2.0mm Mouse Type: 38mm Trackball
Color: Electroplated Black Backlit Color: Blue,red,green
High Light:

Electroplated Black Industrial Metal Keyboard

,

103 Keys Industrial Metal Keyboard

,

20mA Industrial Trackball Keyboard

Industrial Electroplated Black Metal Keyboard With Full Keys, Trackball and Backlight


MKB-FN103A-TB-BL-B


Key Features

1) 103 keys(of them 12 function keys), panel mount
2) Integrated OPTICAL trackball and numeric keypad
3) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
4) Specially designed to operate in harsh environments, ideal for kiosks and other applications in industrial environments

5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface for option
8) Customizable layout at customer’s request


Items Specifications
Key Features

-103(of them 12 function keys)LED individually-lit keys
- Panel mount
- Integrated optical trackball and numeric keypad
- Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
- Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
- Robust construction, high resistance against vandalism
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option
- Customizable layout upon customer’s request

Material

- Face plate: 304 stainless steel
- Keys:High temperature-resistant polycarbonate
- Trackball: 304 stainless steel (Dia: 38mm)
- Back plate: Aluminum

Electrical Data -- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Certification FCC,CE,RoHs
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Dimension

- Front panel: 478.00 x 135.00
Back panel: 502.00 x 159.00, thickness:49.10mm (to the tallest component)


Weight

2.2 kgs
