| Brand Name: | KINGLEADER |
| Model Number: | TSK8006 |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/ctn |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

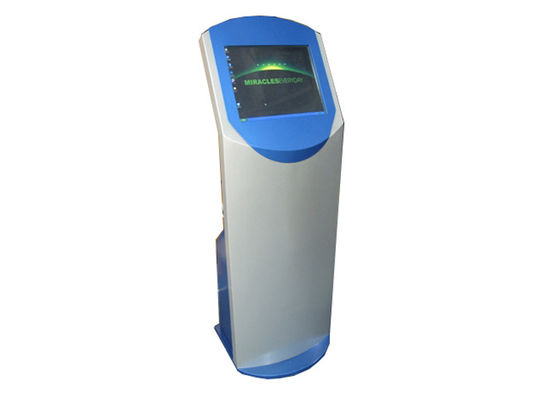

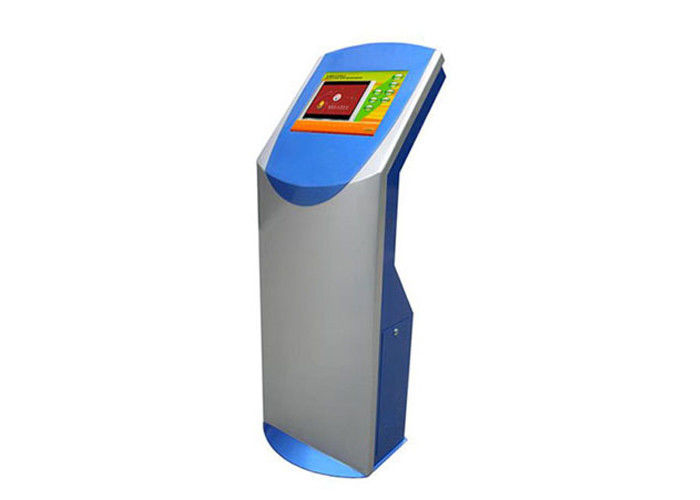

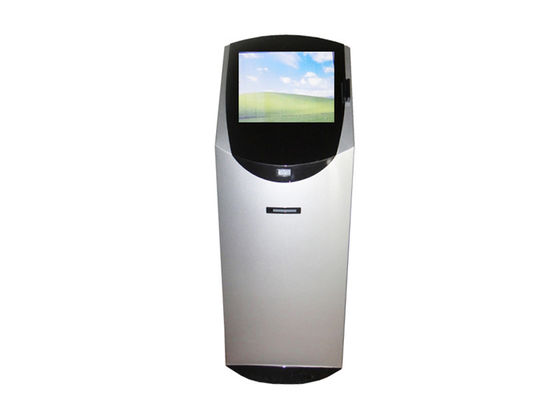

Multimedia Interactive Touch Screen Kiosk with Thermal Printer and Barcode Reader
PN:TSK8006 (Freestanding Model)
Key Features:
1) High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
2) 15″,17″,19″TFT LED displays for option
3) Durable steel enclosure, sleek, curved, extra slim, stylish and ADA compliant design
4) Built-in hi-fi amplified speakers
5) Customizable
6) Applications: office building, court house, hospital/medical center, airport, university,
government building, shop, theater and other public places where information and/or
transaction are provided in self-service and interactive manner.
| Technical Specification | ||
| TFT LED Display | ||
| Resolution | 1024x768(15″);1280x1024(17″and 19″) | |
| Brightness | 250~300nits | |
| Contrast ratio | 3000:1 | |
| Response time | 3 ms | |
| Touch Screen | ||
| Type | Vandal-proof infra-red touch screen | |
| Resolution | 4096*4096 | |
| Deviation of error | <2mm | |
| Light Transmittance | ≥ 92% | |
| Surface Hardness | 7 Mohs scale | |
| Lifetime | 50,000,000 times at one single location | |
| Response time | less than 16 ms | |
| Touch activation force | 10~100g | |
| Enclosure | ||
| Durable steel enclosure (different colors for option) | ||
| Built-in power control panel, and hi-fi speakers. | ||
| Two cooling fans for computer board and main body separately | ||
| RJ45 interface | ||
| Large access doors with tubular locks/keys | ||
| Standard Computer (shown as below) or Customer’s Preference | ||
| Mother board | Industrial mother board(Customizable on request) | |
| CPU | Bay Trail-D Celeron J1900 2.0G Hz(Customizable on request) | |
| RAM | 2GB(Customizable on request) | |
| Hard Disc | 500G HDD(Customizable on request) | |
| Interface and Port | 4×USB2.0; 1×VGA; 1 x COMM;1x LTP;1x LAN,1x Audio port | |
| Others | Intel Graphics Media Accelerator 3150, support Direct X 9.0C | |
| Compatible Operation System | ||
| LINUX/Win3.X/98/2000/NT4.0/XP/Win7/8/10 | ||
| Power supply | ||
| AC110V-240V,50H-60HZ | ||
| Working Environment | ||
| Temperature -20℃-+65℃, Relative humidity 10%-90% | ||
| Dimension | ||
| 145x 45x 35CMs (H x W x D) | ||
| Packaging | ||
| Exportable,transport-worthy plywood crate | ||
| Warranty | ||
| One year after the date of delivery | ||
| Optional Peripherals | ||
| Metal keyboard,keypad,webcam,barcode scanner,card reader,thermal printer,coin acceptor,bill acceptor,finger printer reader etc. | ||
|
