| Brand Name: | KINGLEADER |
| Model Number: | MKB-FN103A-TP |
| MOQ: | 1pcs |
| Price: | US$150-250 |
| Packaging Details: | 1pcs/box, 10boxes/ctn |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

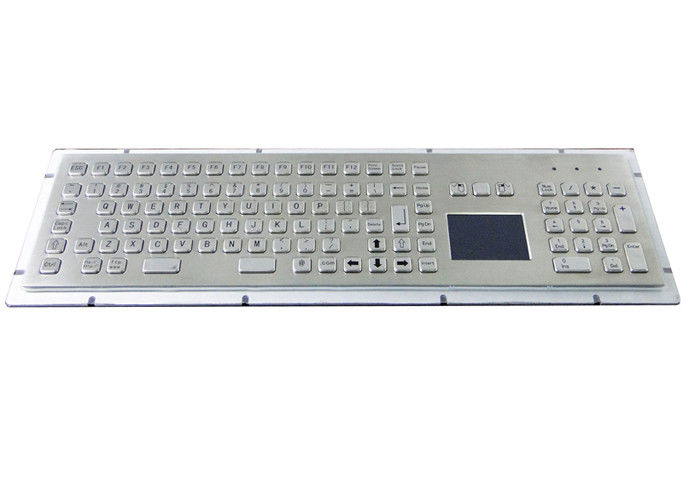

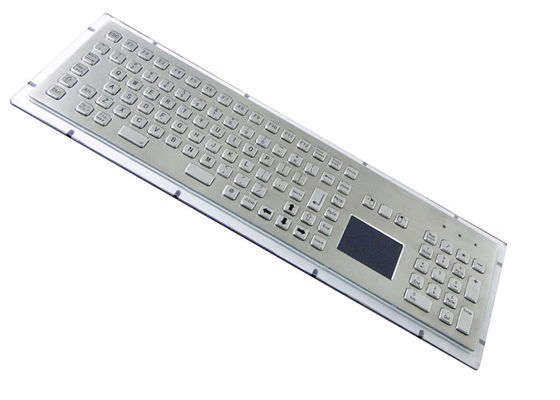

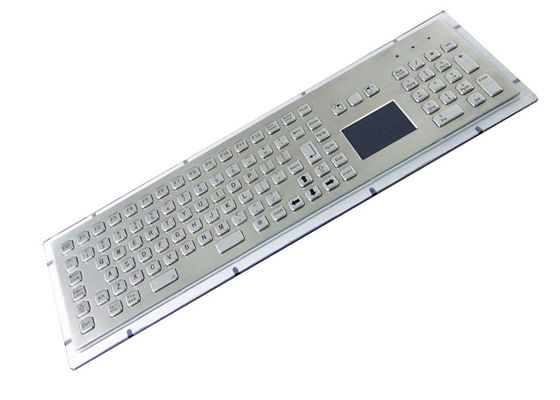

Waterproof IP65 Rated Rugged Panel Mount Metal Keyboard With Numeric Keypad and Trackpad
Key Features
1) 103 keys(of them 12 function keys), panel mount
2) Integrated touchpad and numeric keypad;
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into computer directly
8) Customizable
-KINGLEADER’s rugged panel mount keyboards allow for easy integration into workstations or other industrial environments.
-Our industrial keyboards meet NEMA4,4X,IP65 specifications which enables them to survive in the roughest of conditions
MKB-FN103A-TP(Panel Mount Model)
|
Technical Specification |
|
|
Material |
|
|
Front panel & Keys |
Brushed stainless steel |
|
Back panel |
Aluminum alloy |
|
Mouse |
Touchpad |
|
Electrical Data |
|
|
Power supply voltage |
DC 5 V ± 5% |
|
Current rating |
20 mA |
|
Interface |
USB or PS2 |
|
EMC compliant |
Emission: EN 50081-1 Immunity: EN 50082-1 |
|
FCC |
Part 15, class B |
|
Certification |
CE,FCC |
|
Environmental Characteristics |
|
|
Operating temperature |
-20º C to + 60º C |
|
Key travel |
2.0mm |
|
Lifetime (cycles) |
Min 5, 000, 000 actuations |
|
Sealing protection |
IP65/NEMA4X from the front |
|
Vibration resistance |
5 Hz - 200 Hz, IEC 60512-4 |
|
Shock resistance |
3 axis 150 m/s² - 11 ms, IEC 60512-4 |
|
Compatible Operation System |
|
|
PS2 |
Win NT4, 98SE, 98ME, 2000, XP,Win7,Linux,Win8 |
|
USB |
Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7,Linux,Win8 |
|
Weight and Dimension |
|
|
Weight |
2.50kg |
|
Dimension |
Front panel: 478.0 x 135.0 x 32.10mm |
|
|
