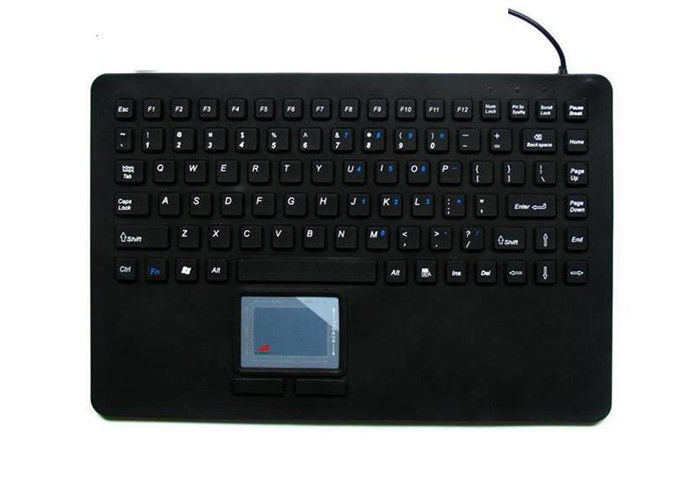

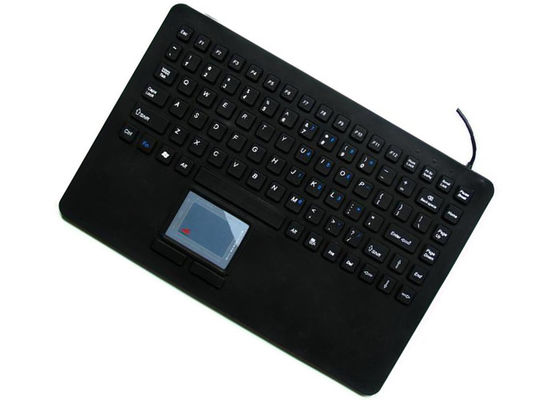

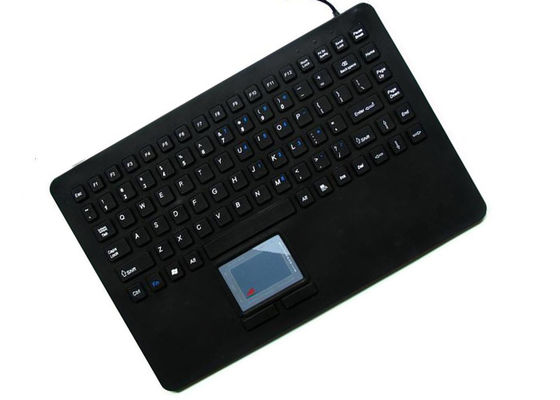

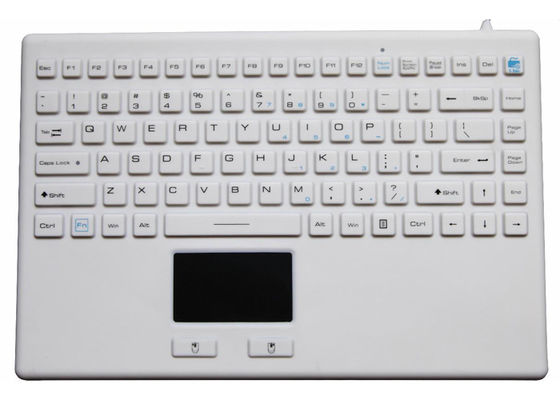

5VDC Silicone 87 Keys Waterproof Medical Keyboard 100mA With Integrated Touchpad

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,RoHs,IP68
Model Number SKB-87-TP
Minimum Order Quantity 1pcs
Price US$40-60
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 3000pcs/month
Product Details
Material Silicone Number Of Keys 87 Keys
Protection Level IP68 Layout US Or Based On Customer's Request
Interface USB Mounting No Mounting Required
High Light

5VDC Silicone Waterproof Medical Keyboard

,

87 Keys Waterproof Medical Keyboard

,

100mA Medical Grade Keyboard

Leave a Message
Product Description

Antibacterial Waterproof Medical Keyboard With Integrated Touchpad for Medical Treatment



Rugged super slim, washable, IP68 rated silicone keyboard with integrated touchpad



Part Number: SKB-87-TP



Typical application:



Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists


Specifications:

-  87 keys including 12 function keys,built-in touchpad

-  Rated Voltage:+5VDC

-  Key Lifespan:>10 millions actuations

-  Seal Protection level: IP68

-  Interface: USB or PS/2 or USB+PS/2

-  Layout: US English or customization

-  Compatibility: Microsoft® Windows 7//8/10/Vista®/XP/2000/ME/98/ Linux

-  Operating Temperature:-20℃~+65℃

-  Dimensions: 345(L) x 225(W) x 10(T) mm

-  Color: Custom color available

Items Specifications
Key Feature

- 87 keys including 12 function keys,built-in touchpad

- Use of antimicrobials to contain reproduction of harmful bacterials

- Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists

- Custom color available

Material - Silicone
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: <=100mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force: 90 ±15g
- Key travel: 1.50mm ±0.5mm
- Lifetime (cycles): Min 10, 000, 000 actuations
- Sealing protection: IP68
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification FCC,CE,RoHs
Dimension -345(L) x 225(W) x 10(T) mm
Weight 0.85 kgs



5VDC Silicone 87 Keys Waterproof Medical Keyboard 100mA With Integrated Touchpad 0

FAQ

1. Q: How could I get samples?
A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight.We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on the quantity,weight and carton size and your area.
3. Q: How can i get your price list?
A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message“.we will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
A: Yes,We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
A: We accept terms of T/T /Westunion/Paypal/LC
6. Q: what's the warranty of your products?
A: one year
