Brand Name: | KINGLEADER |
Model Number: | SKB-M106 |
MOQ: | 1pcs |
Price: | US$40-80 |
Packaging Details: | 1pcs/box, 10pcs/ctns |
Payment Terms: | T/T,Paypal, Western Union, L/C, D/A, D/P, MoneyGram |

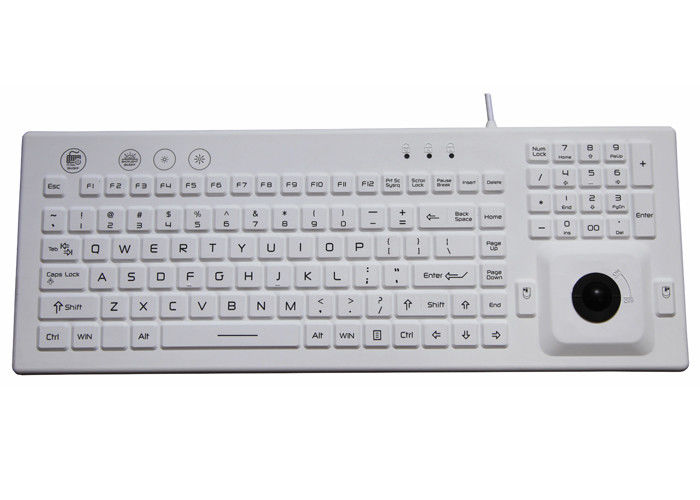

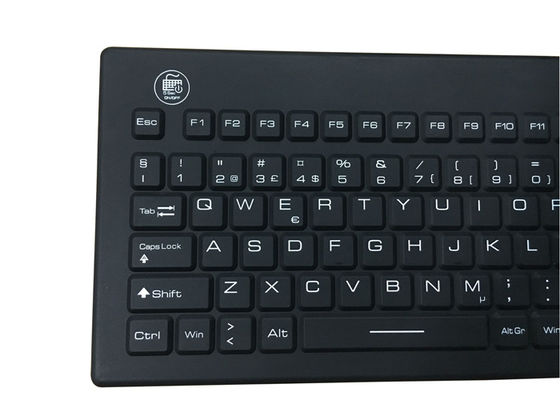

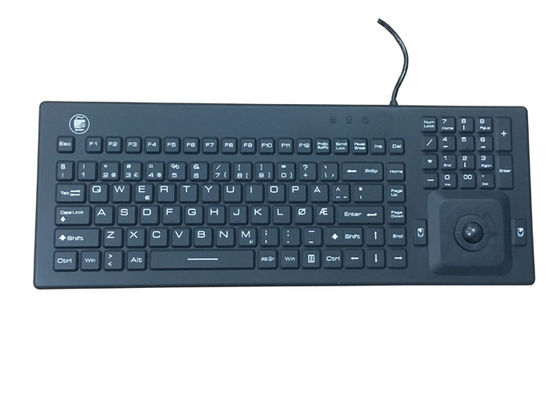

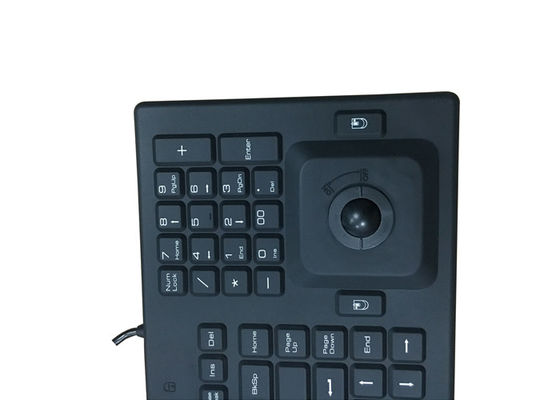

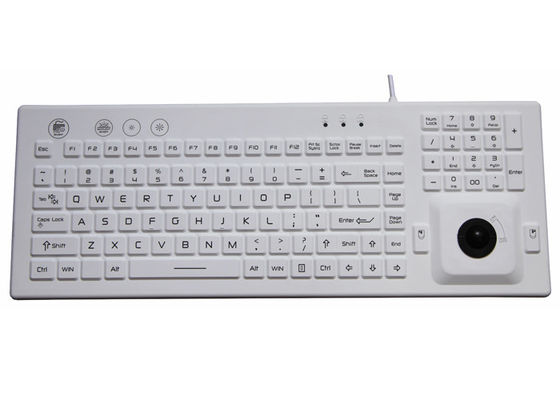

Silicone / Industrial Waterproof Medical Keyboard with Built-in Mouse Trackball and USB
Part Number: SKB-M106
Typical application:
Used in harsh industrial, military environment OR other medical environments where harmful bacteria exists
Specifications:
- Main power and backlight ON/OFF switch, two level adjustable brightness of backlight
- Built-in touchpad
- Number of Keys: 106 keys including 12 function keys
- Key Lifespan: > 10 millions actuations
- Seal Protection level: IP68
- Interface: USB
- Layout: US English or customization
- Compatibility: Microsoft® Windows 7/8/10/Vista®/XP/2000/ME/98
- Operating Temperature:-10℃~+65℃
- Dimensions: 409 x 139 x 11mm (L x W x H)
- Color: Custom color available
- Certification: CE, FCC,ROHS.IP68
-Disinfect instantly – Low-profile keys that allow for efficient cleaning, reduce disinfection time and protection against cross contamination
-This keyboard exceeds NEMA 4X or IP65 requirements and is fully-submersible, meeting IP68 specifications.
Items | Specifications |
Key Feature |
- 106 keys including 12 function keys and numeric keys,built-in trackball - Use of antimicrobials to contain reproduction of harmful bacterials - Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists - Custom color available |
Material | - Silicone |
Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
Mechanical Data | - Actuation force: 90 ±15g - Key travel: 1.50mm ±0.5mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
Certification | FCC,CE,RoHs |
Dimension | -390.00(L) x 140.00(W) x 15.00(T) mm |
Weight | 1.00kgs |
Our Services
* We’re a professional manufacturer for over 10 years.
* Experienced Technical Staffs and Patient, professional sales team.
* High quality assurance with competitive price
* OEM and ODM available.
* Any of your feedback will be responded within 12 hours
* Best after sales service to ensure satisfaction from customers.
![]() |
