FCC Industrial Metal Desktop Keyboard 20mA With Hand Touched Mechanical Keys

Place of Origin China
Certification CE,FCC,ROHS
Model Number MKB-63C-TB-DT
Minimum Order Quantity 1pcs
Price US$150-250
Packaging Details 1pcs/box,10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Stainless Steel Keys Mechanical Keys
Color Metal Silver Number Of Keys 63
Interface USB Layout English/optional
High Light

FCC Industrial Metal Desktop Keyboard


20mA Industrial Metal Desktop Keyboard


Mechanical Keys Desktop Metal Keyboard

Leave a Message
Product Description

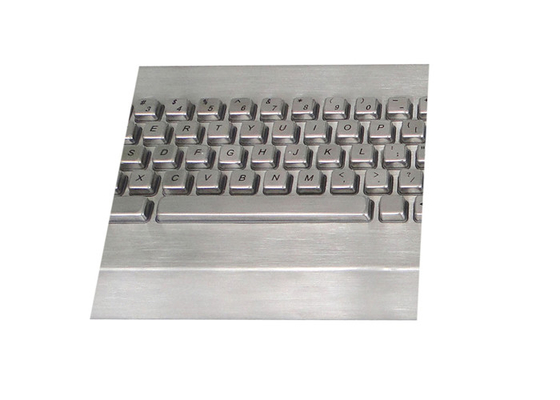

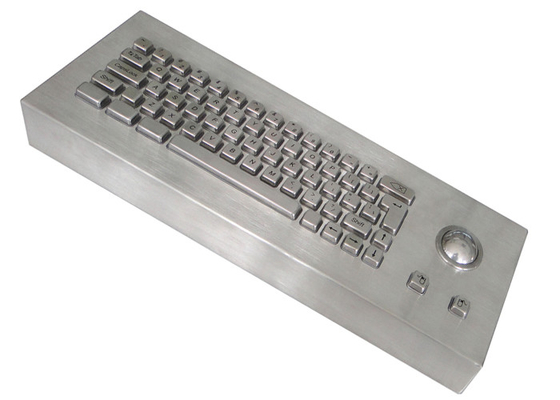

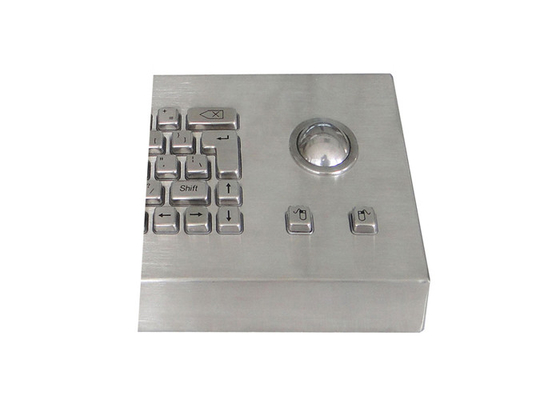

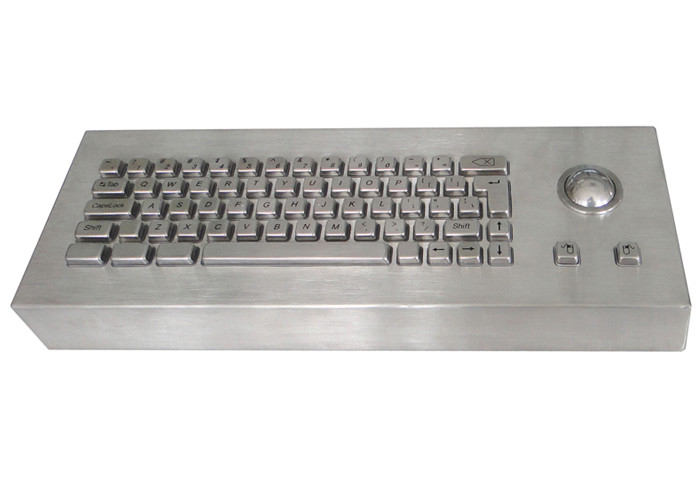

Industrial Metal Desktop Keyboard with 63 Good Hand-touched Mechanical Keys


MKB-63C-TB-DT(Desktop Model)


Key Features:

- Stand-alone metal keyboard
- 63 keys,  built-in mechanical key-switches with integrated optical trackball
- Full travel keys,  excellent typing feel
- Designed for rugged application

- Built from stainless steel, resistant to vandalism, corrosive, rust
- Dust-proof and liquid-proof,  IP65 up to IP67 compliant
- USB or PS2 interface available


- Custom layout available

Items Specifications
Key Features

Stand-alone metal keyboard
- 63 keys, built-in mechanical key-switches with integrated optical trackball
- Full travel keys, excellent typing feel
- Designed for rugged application

- Built from stainless steel,resistant to vandalism,corrosive,rust
- Dust-proof and liquid-proof, IP65 up to IP67 compliant
- USB or PS2 interface available

- Custom layout available


- Case and keys: 304 stainless steel
- Trackball:304 stainless steel (Dia: 38mm)


Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force:80g
- Key travel: 4.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification FCC,CE,RoHs
Dimension 392 X 150 X 42 mm (L x W x H)

2.2 kgs
