20mA Black Metal Keyboard 64 Keys Integrated Touchpad SS Electrophoretic

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS
Model Number MKB-64A-TP-BL-B
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Material Of Back Panel Aluminum
Finish Electroplated Black Number Of Keys 64 Keys
Mouse Touchpad Interface USB Or PS/2
High Light

20mA Black Metal Keyboard

,

64 Keys Black Metal Keyboard

,

SS Electrophoretic Metal Mechanical Keyboard

Leave a Message
Product Description

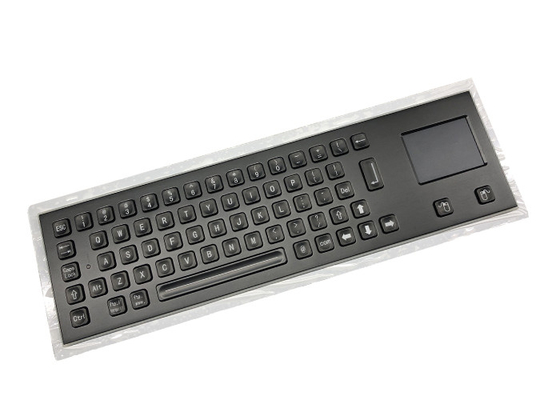

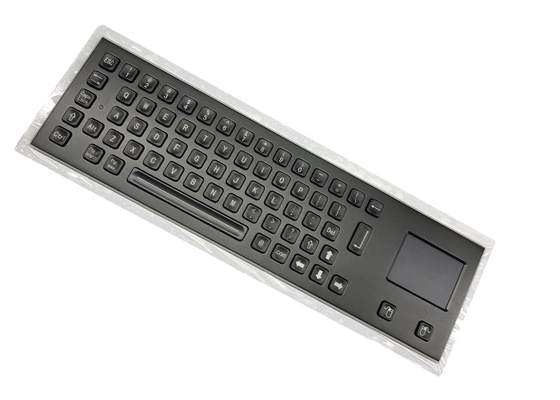

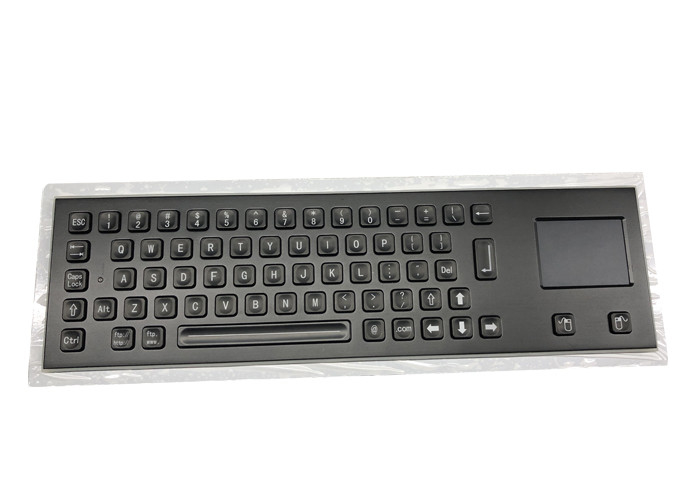

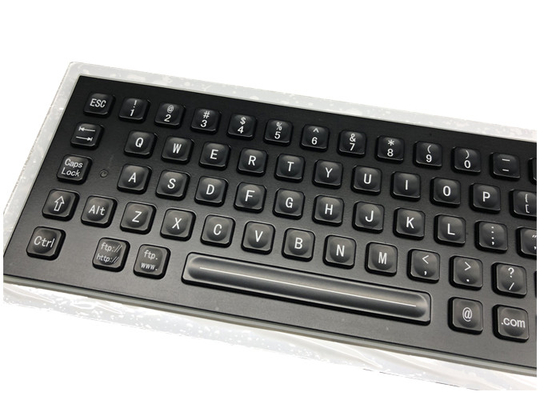

Electrophoretic black Stainless Steel Metal Keyboard Integrated Touchpad and Backlight



MKB-64A-TP-BL-B



Items Specifications
Key Features

-65 LED individually-lit keycaps

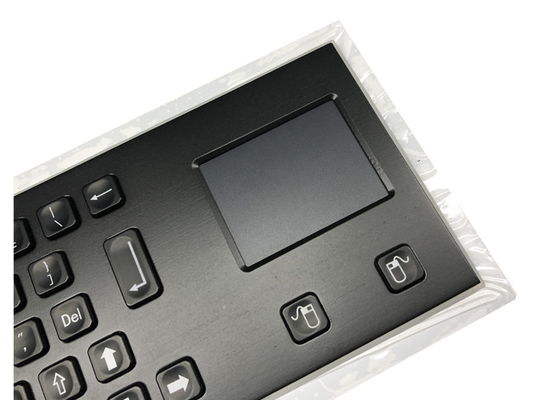

-with integrated touchpad;

- Full travel(2.0mm)keys, excellent tactile feedback

- Etched graphics with permanent ink
- Panel mount, installing from the rear side

- Designed to operate in harsh and low-lit environments, making it ideal for demanding applications in public space or industrial environments
- Robust construction, high resistance against vandalism
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface

- Custom layout available

Material

- Front panel: Brushed stainless steel

- Keycaps:High-temperature resistant polycarbonate

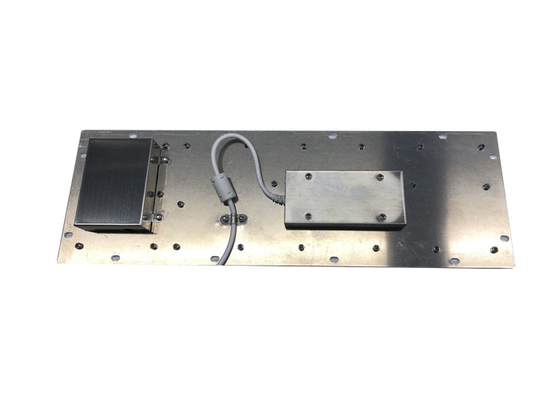

- Back panel: Aluminum alloy

Electrical Data

- Power supply voltage: DC5V ± 5%
- Current rating: 20mA
- Interface: USB or PS2
- EMC compliant:

Emission: EN 50081-1
Immunity: EN 50082-1

- FCC: Part 15, class B
- Safety: EN 60950, CE compliance

Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Color

- Keycap:black

- LED backlight:green,bluce or red

Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification FCC,CE,RoHs
Dimension Front panel: 400.0x124.0x22.2mm
Weight 2.00 kgs



20mA Black Metal Keyboard 64 Keys Integrated Touchpad SS Electrophoretic 0
