| Brand Name: | KINGLEADER |
| Model Number: | MKB-64B-TP-CR |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

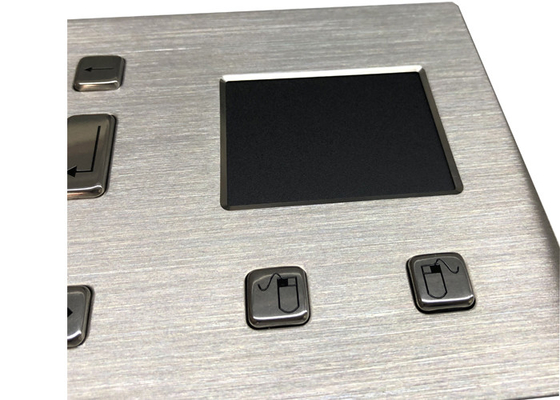

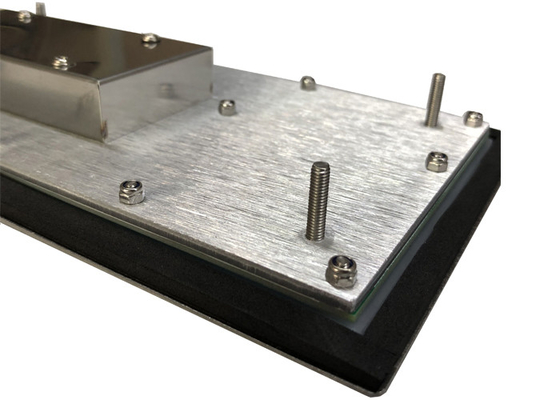

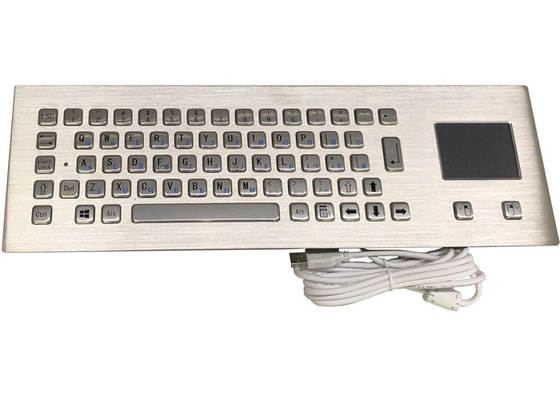

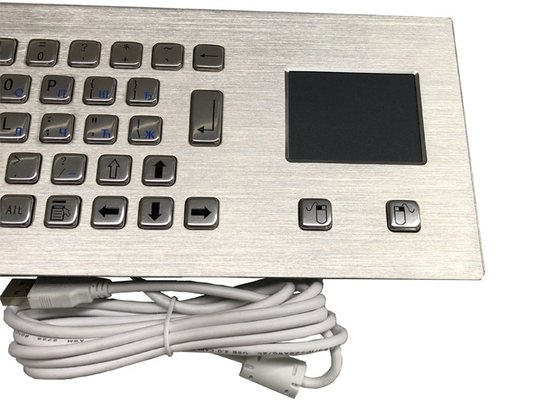

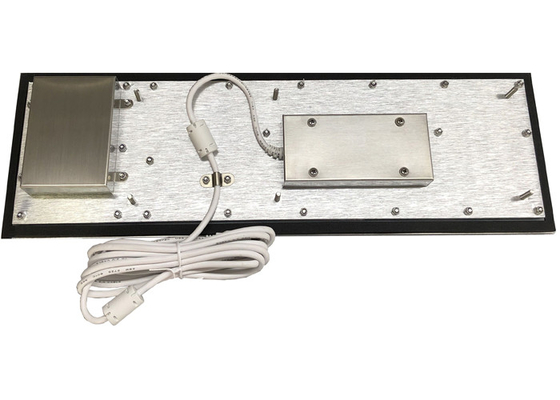

Industrial Metal Keyboard with Built-in Touchpad with Customized Layout Used for Kiosk
PN:MKB-64B-TP-CR
| Items | Specifications |
| Product Description |
|
| Application |
- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,ATM,ADM,CDM,unattended payment terminal,cash kiosk etc - Workstations or machines in factories - Some special locations like toll gate,gas station,airport,seaport,underground mine etc. |
| Key Features |
|
| Material | - Front panel & Keys: Brushed stainless steel - Back panel: Aluminum alloy |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB or PS2 - EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 - FCC: Part 15, class B - Safety: EN 60950, CE compliant |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force for key:120±15g - Key travel: 2.0mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4 |
| Touchpad | - Power supply voltage: 5 VDC ± 10% - Current rating (active mode): 17 mA - Interface: PS2 or USB - X/Y position sensing resolution:1000dpi - X/Y position reporting: Relative - Tracking speed: Maximum 1, 016 m/sec |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification |
|
| Dimension |
|
| Weight |
|
FAQ
1. Q: How could I get samples?
A: If you need to order sample for checking-up, we would like to ask you to pay for the samples and courier freight. We send the samples to you only after receipt of your payment. If you have an courier account, you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on the quantity, weight and carton size and your area.
3. Q: How can i get your price list?
A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message”. We will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
A: Yes, We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
A: We accept terms of T/T /West Union/ PayPal/ LC/Credit Card
6. Q: What's the warranty of your products?
A: one year
|
|
