Liquid Proof Panel Mount Keyboard Stainless Steel 103 Keys With Numeric Keys

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS
Model Number MKB-FN103A-TB-2
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month
Product Details
Number Of Keys 103 Keys Material Of Front Panel Stainless Steel
Material Of Back Panel Aluminum Alloy Material Of Keys Stainless Steel
Key Switch Silicone Rubber Interface USB Or PS/2
Mounting Method Panel Mount From The Rear Side Mouse Trackball
High Light

Liquid Proof Panel Mount Keyboard

,

Numeric Keys Panel Mount Keyboard

,

103 Keys Optical Trackball Keyboard

Leave a Message
Product Description

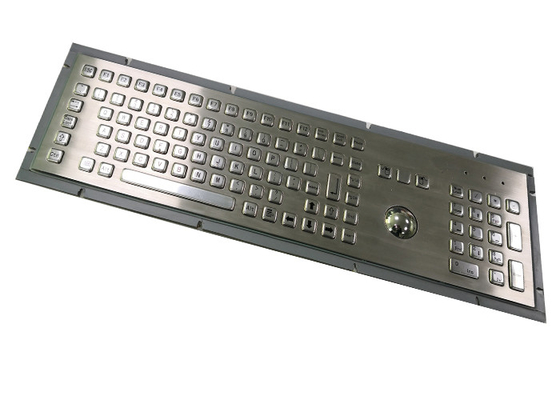

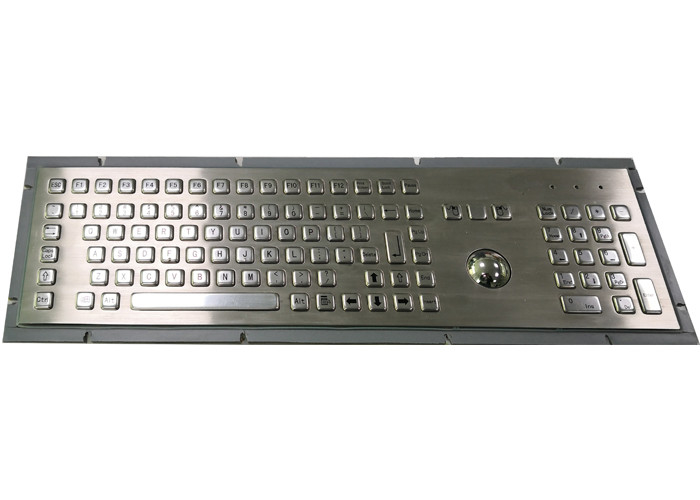

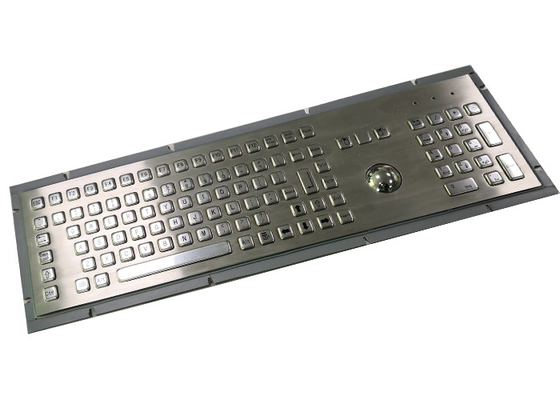

Stainless Steel Panel Mount Keyboard with Numeric keys and Optical Trackball



MKB-FN103A-TB-2(Panel Mount Model)



Items Specifications
Product Description -This metal keyboard combines function keys,OPTICAL trackball and numeric keypad in one single unit
Application

- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,ATM,ADM,CDM,unattended payment terminal etc

- Workstations or machines in factories

- Some special locations like toll gate,gas station,airport,seaport,underground mine etc.

Key Features

- 103 keys including function keys and numeric keys

- Panelmount from the back
- With integrated OPTICAL trackball

- Keys with long travel distance and etched graphics, excellent tactile feedback
- Designed for harsh environments,ideal for kiosks and other applications in industrial environments

- Exposed parts are made of stainless steel, high resistance against vandalism,meet IK07 standard
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option
- Customizable layout on customer’s request

nMaterial

- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy

- Trackball: Stainless steel(Dia: 38mm)

Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

- MTBF:>20,000 hours

- MTTR:<30 minutes

Certification
  • FCC,CE,RoHS
Dimension
  • Front panel: 478.0 x 135.0 x 32.10mm
  • Back panel: 502.0 x 159.0 x 49.10mm
Weight
  • 2.20 kgs
