103 Keys Metal Trackball Keyboard Electrophoretic Black IP65 Dust Proof

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS
Model Number MKB-FN103A-TP-B-2
Minimum Order Quantity 1pcs
Price Get latest price
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Material Of Back Panel Aluminum Alloy
Interface USB Or PS/2 Finish Electroplated Black
Mouse Touchpad Number Of Keys 103 Keys
High Light

103 Keys Metal Trackball Keyboard

,

Electrophoretic Black Metal Trackball Keyboard

,

Dust Proof Industrial Metal Keyboard

Leave a Message
Product Description

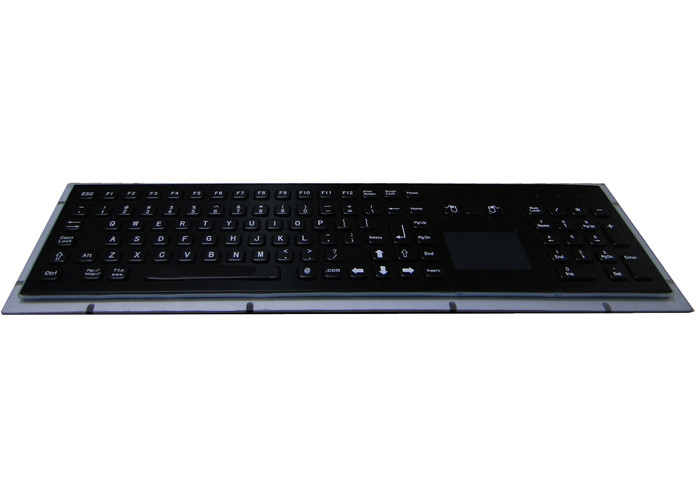

IP65 Industrial Metal Keyboard with Touchpad and Electrophoretic Black Color





Items Specifications
Description Electroplated black,rugged stainless steel, water-proof, vandal-proof, panel mount keyboard with 103 customizable, full travel keys(12 function keys), integrated touchpad and numeric keypad
Application

- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,ATM,ADM,CDM,unattended payment terminal etc

- Workstations or machines in factories

- Some special locations like toll gate,gas station,airport,seaport,underground mine etc.

Key Features

- 103 keys(of them 12 function keys),

- Panel mount from rear side

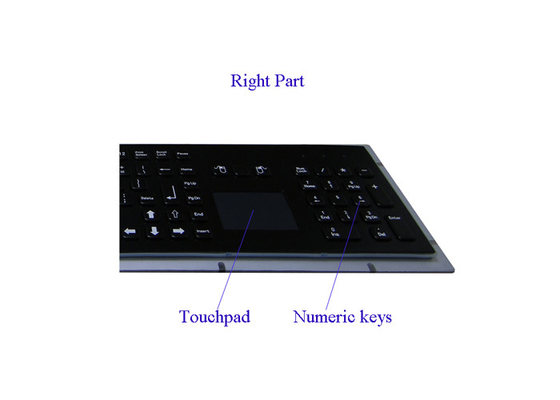

- Integrated touchpad and numeric keypad
- Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
- Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
- Built from stainless steel, high vandal-proof,meet IK07 standard
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option
- Customizable layout upon customer’s request

Material - Front panel & Keys: Brushed stainless steel

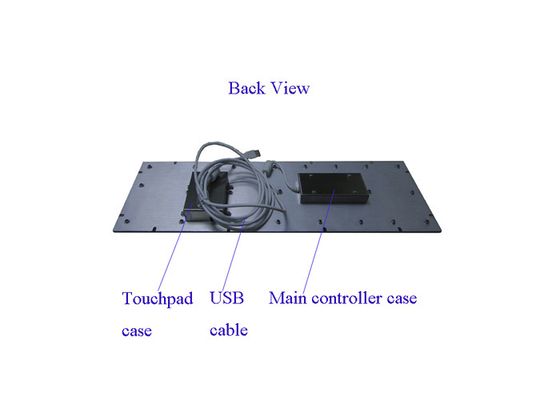

- Back panel: Aluminum alloy
- Key cap: Protruding full travel key(2.0mm) with etched or laser engraved graphics
- Touchpad: Synaptics high-sensitivity touchpad
Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA

- Touchpad resolution:1000dpi
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant

Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

- MTBF:>20,000 hours

- MTTR:<30 minutes

Certification CE,FCC,RoHS
Dimension

- Front panel: 478.0 x 135.0 mm
- Back panel: 502.0 x 159.0 mm

- Thickness:32.10mm( to the tallest component)

Weight 2.20 kgs





MKB-FN103A-TP-B-2

Key Features

1) 103 keys(of them 12 function keys), panel mount
2) Integrated touchpad and numeric keypad
3) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
4) Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface for option
8) Customizable layout upon customers request
