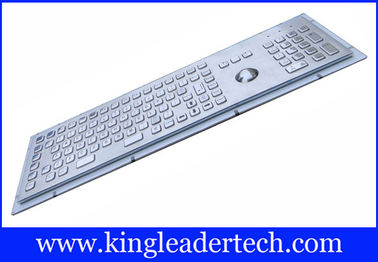

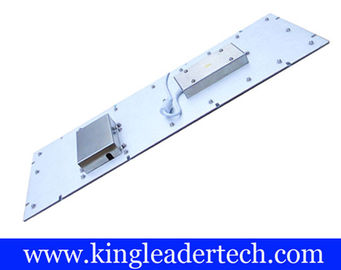

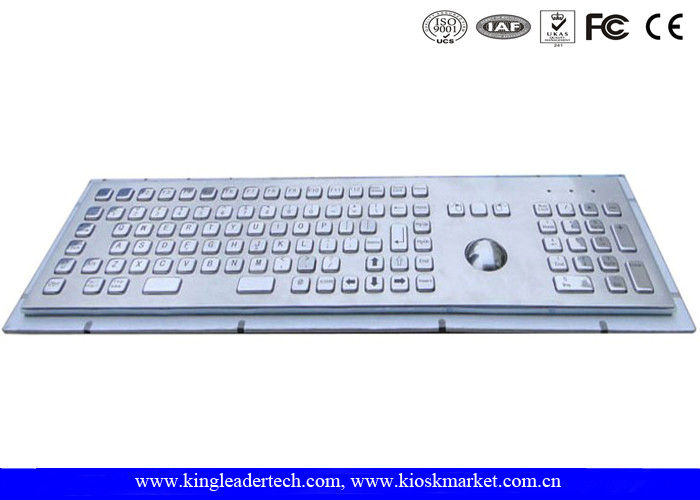

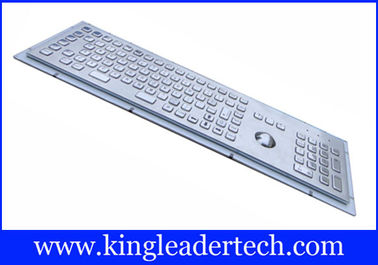

Rugged Metal Industrial Keyboard With Trackball 103 Function Keys And Number Keypad

  • Rugged Metal Industrial Keyboard With Trackball 103 Function Keys And Number Keypad
  • Rugged Metal Industrial Keyboard With Trackball 103 Function Keys And Number Keypad
  • Rugged Metal Industrial Keyboard With Trackball 103 Function Keys And Number Keypad
  • Rugged Metal Industrial Keyboard With Trackball 103 Function Keys And Number Keypad
Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKB-FN103A-TB
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month
Product Details
High Light

keyboard with built in trackball

,

keyboard and trackball

,

Rugged Metal Industrial Keyboard With Trackball
Leave a Message
Product Description

Rugged Metal Industrial Keyboard With Trackball 103 Function Keys And Number Keypad



PN:MKB-FN103A-TB



Key Feature:

-103 keys(of them 10-12 function keys), panel mount

-Integrated trackball and numeric keypad;

-Protruding full travel(2.0mm)keys with etched engraved graphics, excellent tactile feedback

-Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in public places.

-Built from stainless steel, high vandal-proof.

-Dust-proof and liquid-proof, meet IP65 requirement
-PS/2 or USB interface, easy to plug into computer directly
-Optical trackball or mechanical trackball for option
-Customizable

Specifications



Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Trackball: Stainless steel(Dia: 38mm)





Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant



Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6



Mechanical Data

Actuation force for key:120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX



Weight and Dimension

Weight: 2.2kg

Dimension:
Front panel: 478.0 x 135.0 x 32.10mm
Back panel: 502.0 x 159.0 x 32.10mm(Mechanical track-ball)
Back panel: 502.0 x 159.0 x 49.10mm(Optical trackball)

Rugged Metal Industrial Keyboard With Trackball 103 Function Keys And Number Keypad 0

Rugged Metal Industrial Keyboard With Trackball 103 Function Keys And Number Keypad 1
