Rugged 65 Keys Industrial Kiosk Keyboard With Short Keys And Trackball

Place of Origin China
Certification CE,FCC
Model Number MKB-64FA-TB
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Keypad Button Material Stainless Steel Material Of Front Panel Brushed Stainless Steel
Number Of Keys 65 Sealing Protection Level IP65
Interface USB,PS/2 Or USB+PS/2 Mounting Method Panel Mounting
High Light

trackball keyboard


keyboard and trackball


65 Keys Industrial Kiosk Keyboard

Leave a Message
Product Description

Rugged 65 Keys Industrial Kiosk Keyboard With Short Keys And Trackball



Rugged stainless steel, water-proof, vandal-proof, panel-mount keyboard with 64 customizable flat keys and integrated trackball

Key Features:

1) 65 keys, with integrated trackball, panel mount
2) Flat/non-protruding short travel(0.45mm)keys, excellent tactile feel;
3) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places;
4) Built from stainless steel, high vandal-proof.
5) Dust-proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers directly
7) Customizable







Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

 Key cap: Flat/non-protruding short travel key (0.45mm), raised Braille or sunk etched graphics

Trackball: Stainless steel trackball (Dia: 38mm)




Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant


Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6



Mechanical Data

Actuation force for key:150±15g

Key travel: 0.45mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX


Weight and Dimension

Weight: 1.80kg

  Front panel: 392.00 x 110.00 x 30.10mm
  Back panel: 416.00 x 134.00 x 30.10mm

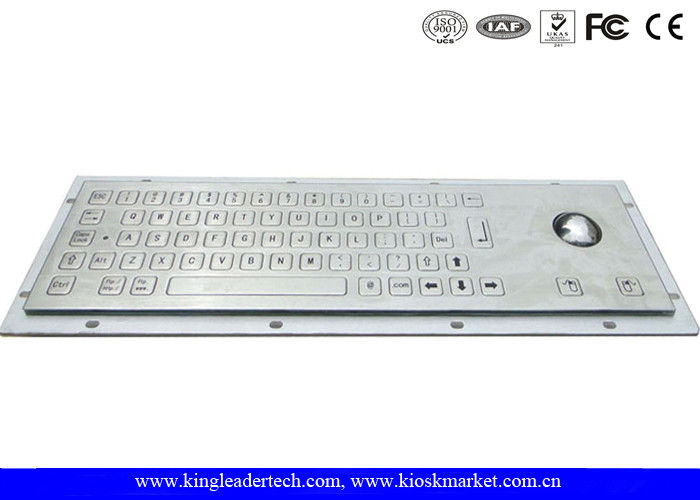

Rugged 65 Keys Industrial Kiosk Keyboard With Short Keys And Trackball 0

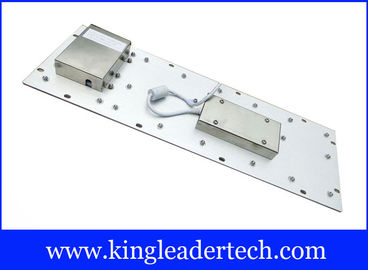

Rugged 65 Keys Industrial Kiosk Keyboard With Short Keys And Trackball 1
