| Brand Name: | KINGLEADER |
| Model Number: | MKB-64A-TB |
| MOQ: | 1pcs |
| Price: | US$100-200 |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

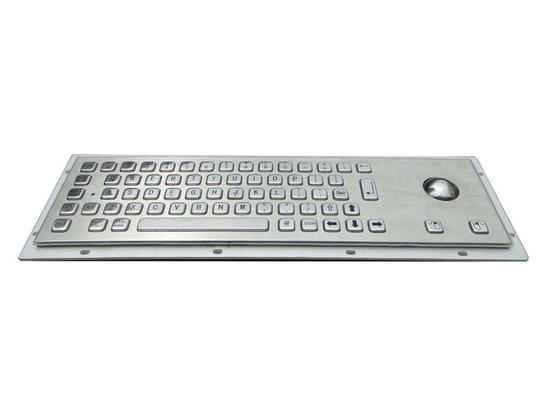

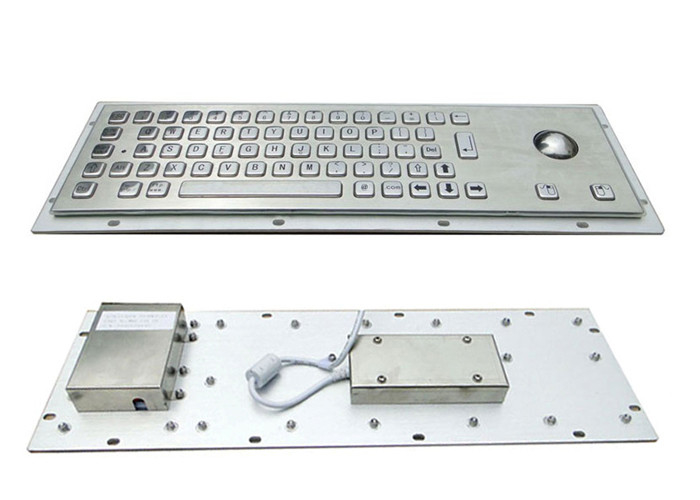

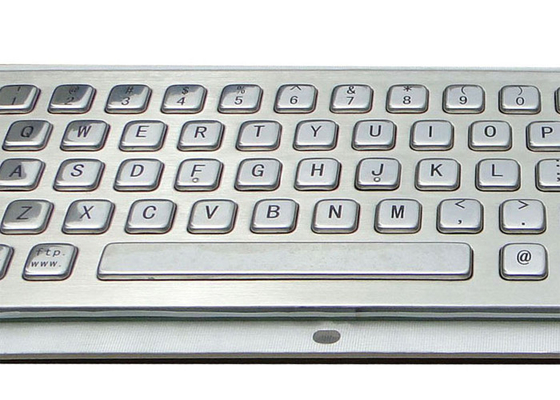

Panel Mount Brushed Metal Industrial Keyboard With Trackball And 64 Keys
MKB-64A-TB
Key Features

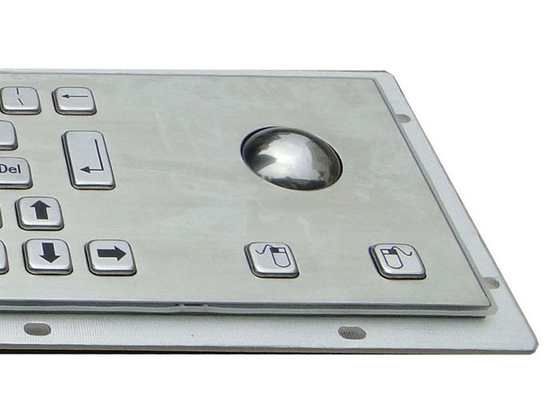

1) 64 keys, with integrated OPTICAL trackball
2) Panel mounted (mounted from the back side)
3) Full travel(2.0mm)keys, excellent tactile feedback
4) Etched graphics with permanent ink
5) Specially designed to operate in harsh environments, making it ideal for kiosk and other applications in harsh environment.
6) Built from stainless steel, high vandal-proof.
7) Dust-proof and liquid-proof, meet IP65 requirement
8) PS/2 or USB interface for option
9) Customizable layout/characters
|
Specifications |
|
|
Material |
Front panel & Keys: Brushed stainless steel |
|
Back panel: Aluminum alloy |
|
|
Trackball: Stainless steel(Dia: 38mm) |
|
|
Electrical Data |
Power supply voltage: DC 5 V 5% |
|
Current rating: 20mA |
|
|
Interface: USB or PS2 |
|
|
EMC compliant. |
|
|
FCC: Part 15, class B |
|
|
Safety: EN 60950, CE compliant |
|
|
Environmental Characteristics |
Operating temperature: -20 C to + 60 C |
|
Storage temperature: - 40 C to + 80 C |
|
|
Saline mist: 96 hours, IEC 60512-6 |
|
|
Damp heat test at + 40 C: 21 days, IEC 60512-6 |
|
|
Dry heat test at + 85 C: 10 days, IEC 60512-6 |
|
|
Mechanical Data |
Actuation force for key:120±15g |
|
Key travel: 2.0mm |
|
|
Lifetime (cycles): Min 5, 000, 000 actuations |
|
|
Sealing protection: IP65/NEMA4X from the front |
|
|
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 |
|
|
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 |
|
|
Operation system |
PS2: Win NT4, 98SE, 98ME, 2000, XP |
|
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX |
|
|
Weight and Dimension |
Weight: 1.80kg |
|
Dimension: Thickness: 32.20mm |
|
|
|
